Запчасти Case IH PUMA 185 CVT (90.124.AM[04]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

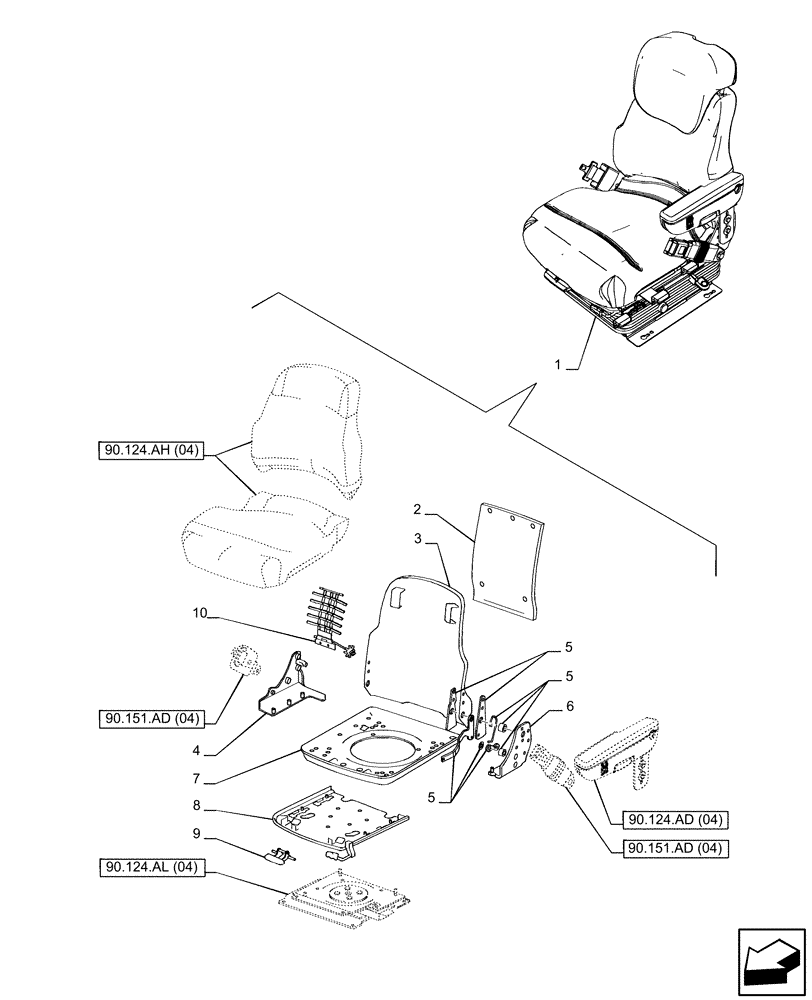

Схема запчастей Case IH PUMA 185 CVT - (90.124.AM[04]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ah (04)
8
3
5
2
1
5
10
9
5
6
5
7
4
90.151.ad (04)
90.151.ad (04)
90.124.ad (04)
90.124.al (04)

Артикул

Название

Примечание

Количество

1

87706661

SEAT

W/Air Suspension, Assy, Incl 2 - 10

1шт.

See Driver Seat Components also in Figure 55.512.CQ (04), 90.124.AD (04), 90.124.AE (04), 90.124.AK (07)

1шт.

See Driver Seat Components also in Figure 90.124.AL (04), 90.124.AK (07), 90.151.AD (04)

1шт.

2

82030777

BRIEF CASE

1шт.

3

87529838

SEAT BACK

1шт.

4

84155803

HOLDER

1шт.

5

82020808

KIT

1шт.

6

47127917

SERVICE KIT

1шт.

7

87529831

SEAT BACK

1шт.

8

87529825

KIT

1шт.

9

87308611

SERVICE KIT

1шт.

10

87367816

KIT

1шт.

Выбрано товаров: 12
