Запчасти Case IH PUMA 185 CVT (90.124.AL[02]) - VAR - 758257, 758258, 758259 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

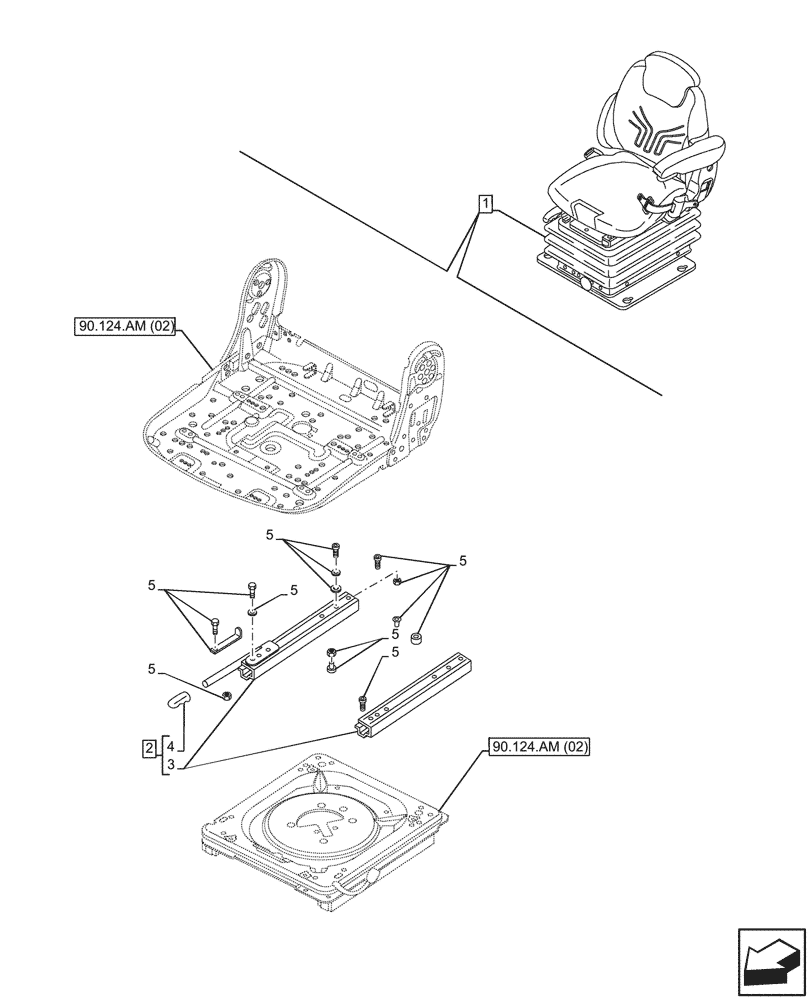

Схема запчастей Case IH PUMA 185 CVT - (90.124.AL[02]) - VAR - 758257, 758258, 758259 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.am (02)
4
1
3
5
5
5
5
2
5
5
5
90.124.am (02)

Артикул

Название

Примечание

Количество

1

84171102

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension with Heated Cushions & Belt Mech Remotes, Incl 2 - 5

1шт.

See also Driver Seat Components in Figure 55.512.CQ (02), 90.124.AD (02), 90.124.AH (02), 90.124.AK (04), 90.124.AM (02), 90.124.AM (03), 90.124.AN (01), 90.124.AQ (01), 90.151.AD (02)

1шт.

2

84191191

REPAIR KIT

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Seat Slide Guide, Incl in 2

1шт.

4

9971715

HANDLE

1шт.

5

84191194

MOUNTING PARTS

1шт.

Include also Small Parts in Figure 90.124.AM (02), 90.151.AD (02)

1шт.

Выбрано товаров: 7
