Запчасти Case IH PUMA 185 CVT (90.124.AL[01]) - VAR - 391176, 758255, 758256 - DRIVER SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

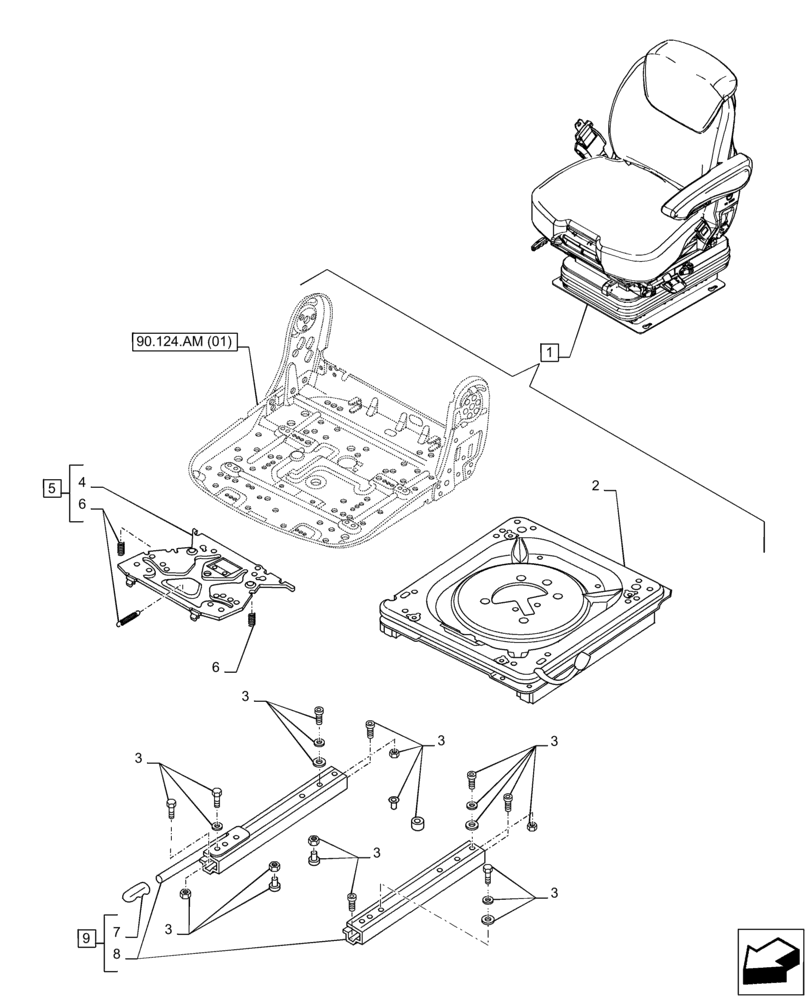

Схема запчастей Case IH PUMA 185 CVT - (90.124.AL[01]) - VAR - 391176, 758255, 758256 - DRIVER SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
3
6
3
3
3
5
3
3
9
2
3
1
4
3
3
8
7
90.124.am (01)

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

W/Air Suspension, ASSY, Incl 2 - 9

1шт.

See Driver Seat Components also in Figure 55.512.CQ (01), 90.124.AD (01), 90.124.AE (01),

1шт.

See Driver Seat Components also in Figure 90.124.AH (01), 90.124.AK (01) (02) (03),

1шт.

See Driver Seat Components also in Figure 90.124.AM (01), 90.151.AD (01)

1шт.

2

82039448

PLATE

1шт.

3

84191194

MOUNTING PARTS

1шт.

4

NSS

NOT SOLD SEPARAT

Compensator, Incl in 5

1шт.

5

84191141

PLATE

ASSY, Incl 4, 6

1шт.

6

84191201

SET OF PARTS

1шт.

7

9971715

HANDLE

1шт.

8

NSS

NOT SOLD SEPARAT

Slide Guide, Incl in 9

1шт.

9

84191191

REPAIR KIT

ASSY, Incl 7, 8

1шт.

Выбрано товаров: 12
