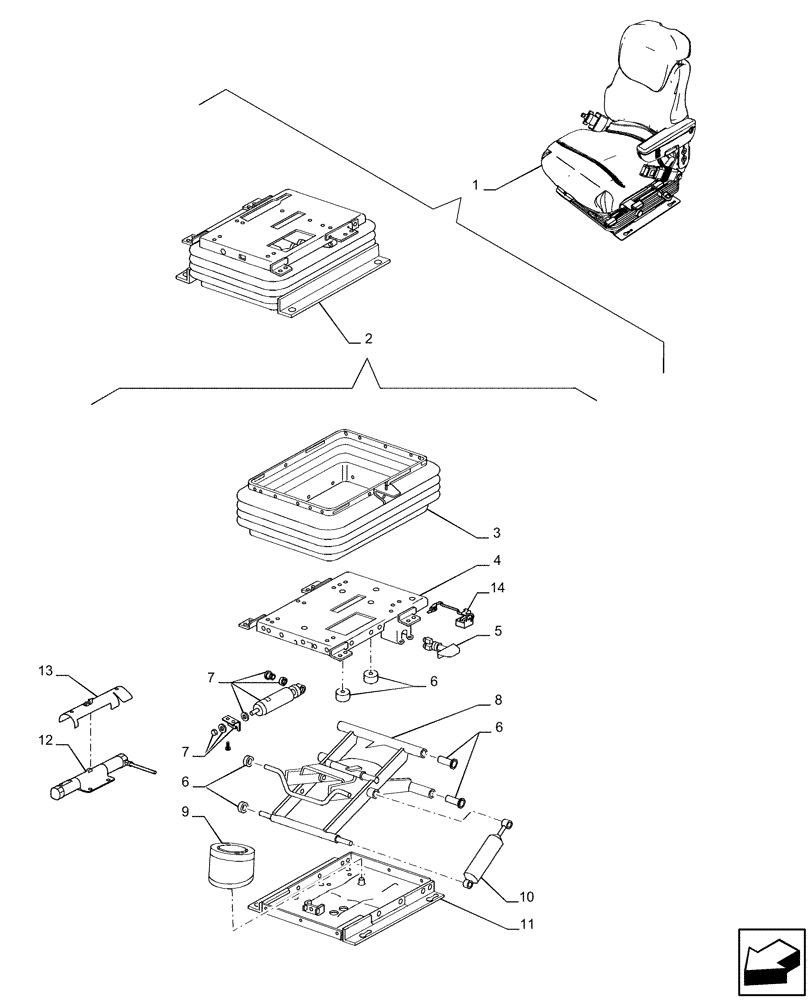

Запчасти Case IH PUMA 185 CVT (90.124.AK[08]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, ADJUSTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84171555

DRIVER SEAT

W/Air Suspension, Assy, Incl 2 - 14

1шт.

See Driver Seat Components also in Figure 55.512.CQ (07), 90.124.AD (07), 90.124.AH (07), 90.124.AE (07)

1шт.

See Driver Seat Components also in Figure 90.124.AL (07), 90.124.AM (07), 90.151.AD (07)

1шт.

2

87529827

SUSPENSION

Incl 3 - 14

1шт.

3

82020843

KIT

1шт.

4

87583455

HOUSING

1шт.

5

82021020

SERVICE KIT

1шт.

6

82020845

SERVICE KIT

1шт.

7

82020830

SERVICE KIT

1шт.

8

82020846

KIT

1шт.

9

82020819

KIT

1шт.

10

87529993

SUSPENSION

1шт.

11

87529826

REPAIR KIT

1шт.

12

87529821

AIR RESERVOIR

1шт.

13

87583456

COVER

1шт.

14

87529794

BOX

1шт.
