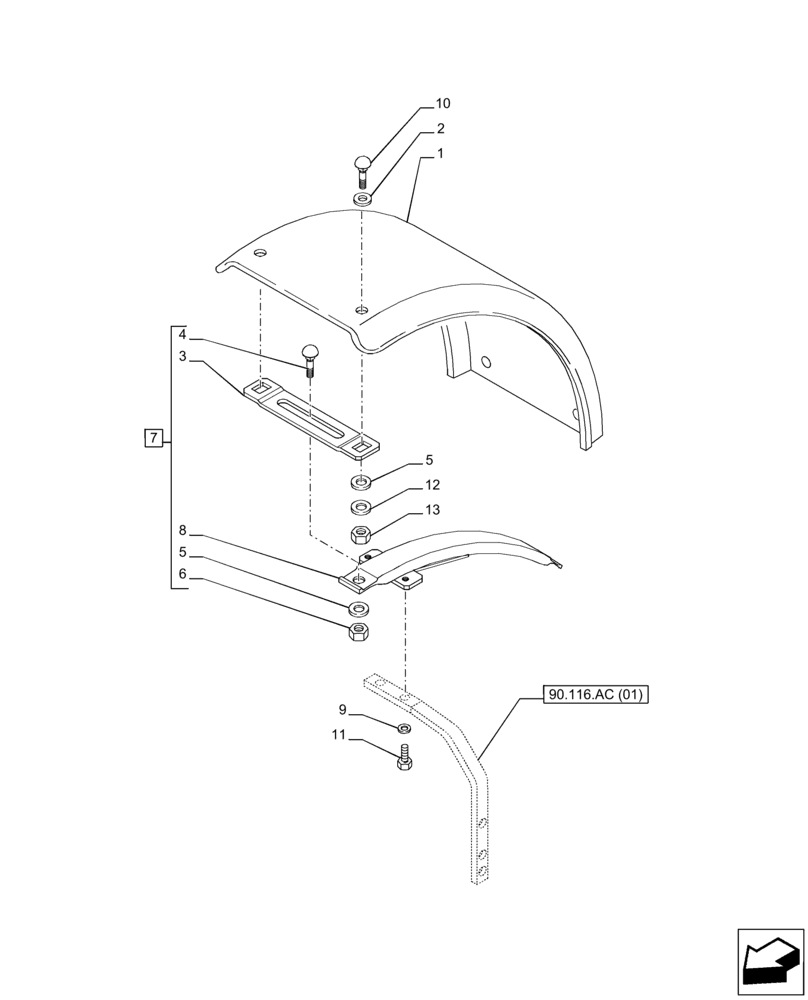

Запчасти Case IH PUMA 185 CVT (90.116.AC[03]) - VAR - 758178 - DYNAMIC FRONT FENDER (480 MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87579460

MUD DEFLECTOR

480mm

1шт.

2

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

41 x 14.5 x 2.5

4шт.

3

82021040

SUPPORT

Plate

2шт.

4

82021059

BOLT,Hex, M10 x 1.25 x 31mm

M10 x 1.25 x 25

2шт.

5

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

2шт.

7

87745844

SUPPORT

ASSY, Incl 3 - 6, 8

1шт.

8

87747746

SUPPORT ASSY.

1шт.

9

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

10

13183201

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 4.8

4шт.

11

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

12

11198574

BELLEVILLE WASHER,Belleville, M10.5

4шт.

13

100016

NUT,M10 x 1.5, Cl 8

4шт.
