Запчасти Case IH PUMA 185 CVT (90.116.AC[01]) - VAR - 758177, 758178, 758179, 758180 - DYNAMIC FRONT FENDER, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

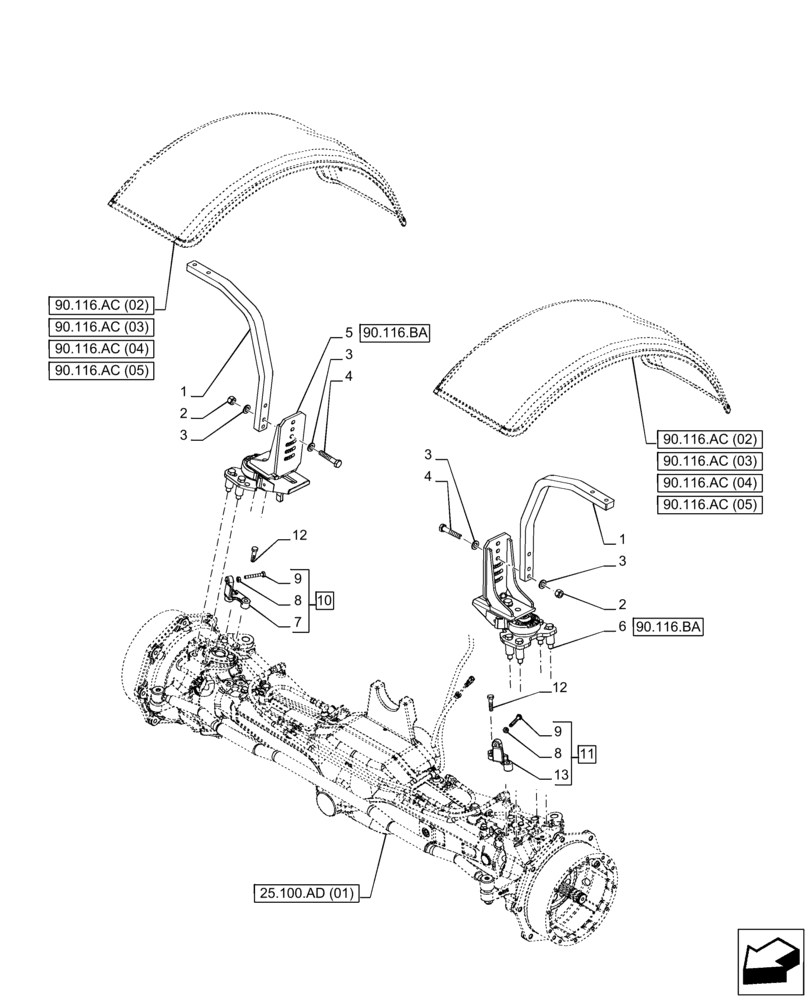

Схема запчастей Case IH PUMA 185 CVT - (90.116.AC[01]) - VAR - 758177, 758178, 758179, 758180 - DYNAMIC FRONT FENDER, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
25.100.ad (01)
3
90.116.ac (04)
90.116.ba
3
2
90.116.ac (02)
2
90.116.ac (05)
12
90.116.ac (03)
90.116.ba
13
3
90.116.ac (05)
5
90.116.ac (04)
6
8
90.116.ac (02)
9
11
1
7
3
9
4
8
12
1
4
90.116.ac (03)

Артикул

Название

Примечание

Количество

1

87744046

SUPPORT

Front Fender

2шт.

2

12164924

NUT,Hex, M12 x 1.25 x 12mm H, Cl 10

M12 x 1.75, Cl 8

4шт.

3

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

4

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

5

47444877

HUB

RH, ASSY

1шт.

6

47444880

HUB

LH, ASSY

1шт.

7

NSS

NOT SOLD SEPARAT

Stop, Incl in 10

1шт.

8

100016

NUT,M10 x 1.5, Cl 8

1шт.

9

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

1шт.

10

87475467

STOP

RH, ASSY, Incl 7 - 9

1шт.

11

87475464

STOP

LH, ASSY, Incl 8, 9, 13

1шт.

12

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

4шт.

13

NSS

NOT SOLD SEPARAT

Stop, Incl in 11

1шт.

Выбрано товаров: 13
