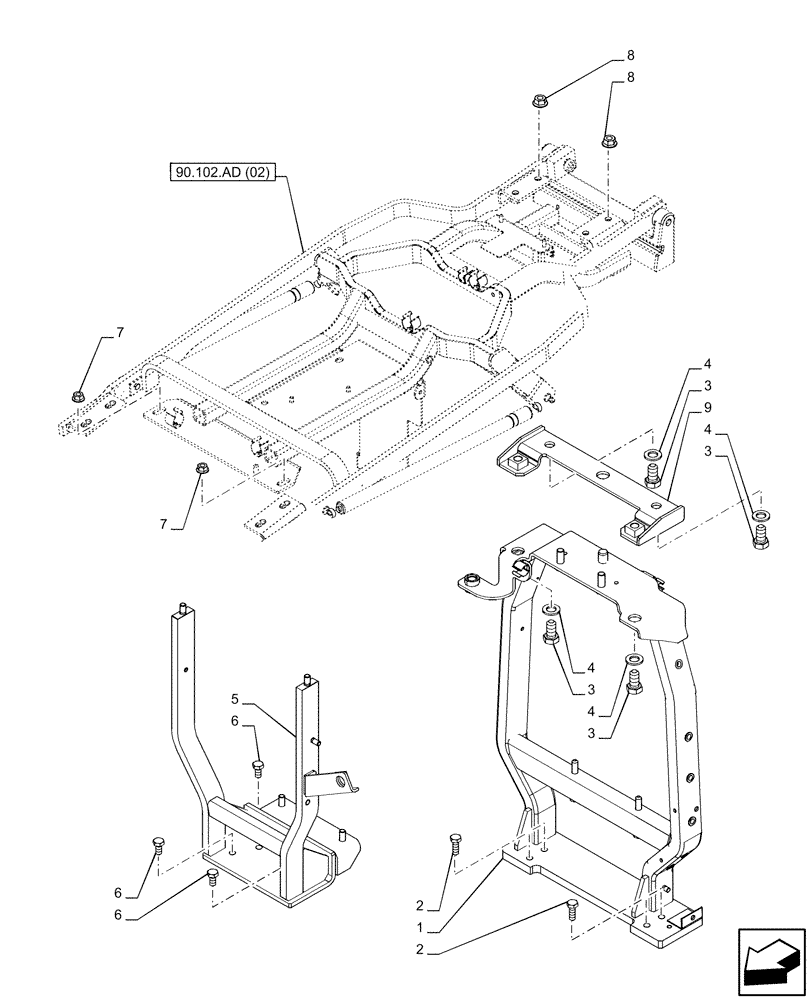

Запчасти Case IH PUMA 185 CVT (90.102.AD[01]) - VAR - 391216, 758207, 758208, 758210 - HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47681115

SUPPORT

Hood Rear

1шт.

2

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

3

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

4шт.

4

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

5

47609817

SUPPORT

Hood Front

1шт.

6

11106121

BOLT,Hex, M10 x 1.5 x 22mm, Cl 8.8, Full Thd

4шт.

7

14059421

FLANGE NUT,Hex, M10 x 1.25, Cl. 10

M10 x 1.25

2шт.

8

87016578

NUT,Hex, M12 x 1.75, Cl 10

2шт.

9

84580344

BRACKET

1шт.
