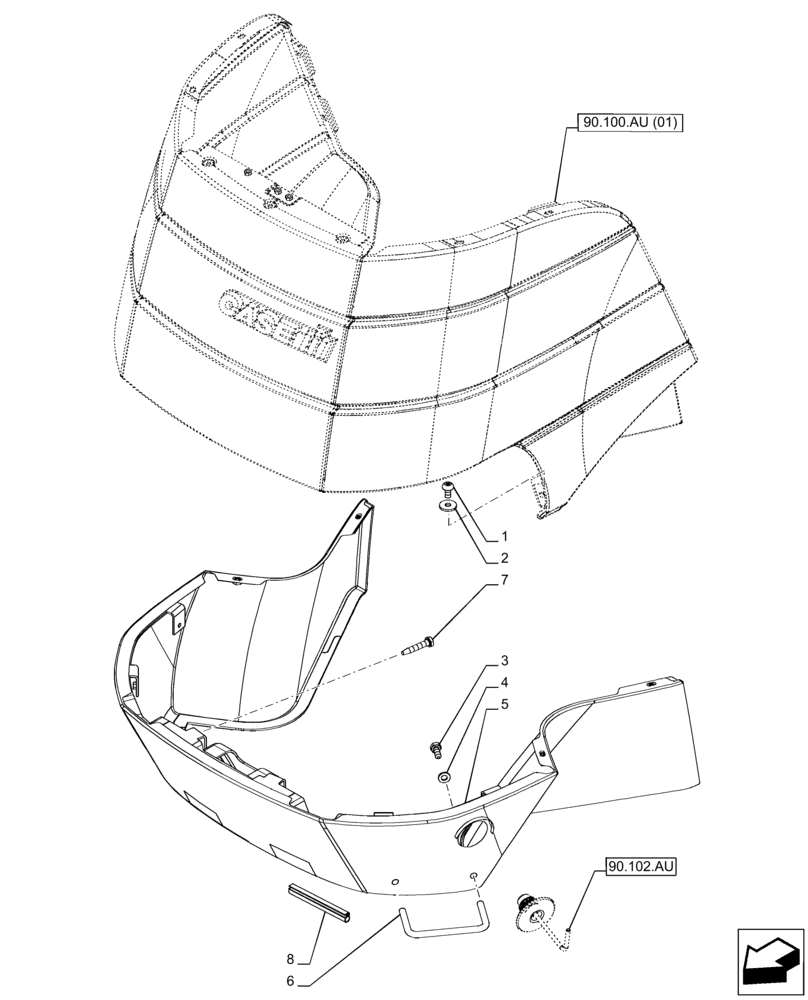

Запчасти Case IH PUMA 185 CVT (90.100.AN) - VAR - 391216, 758207, 758208, 758210 - GRILLE, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

4шт.

2

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

4

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

5

84368379

GRILLE

Lower

1шт.

6

84368375

HANDLE

Radiator Grille

1шт.

7

82880826

SCREW,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

8

87592725

SEAL

Hood Front

1шт.
