Запчасти Case IH PUMA 185 CVT (90.100.AC[03]) - VAR - 391216 - FRONT AXLE, SUSPENDED, HOOD, SIDE PANEL, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

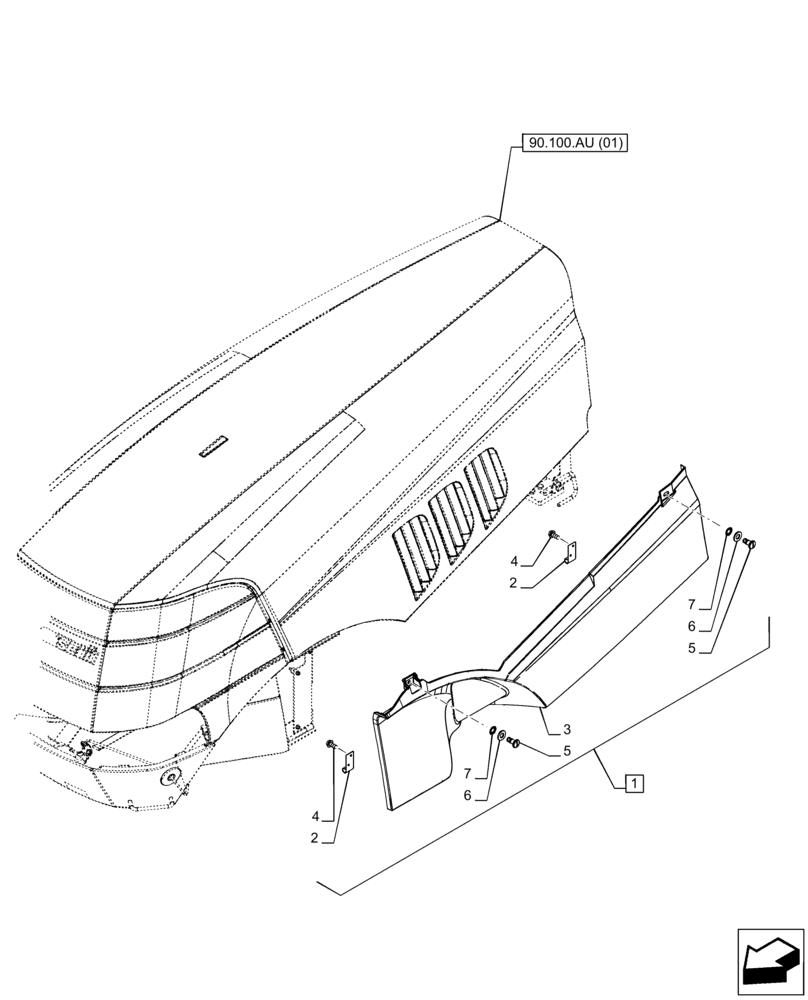

Схема запчастей Case IH PUMA 185 CVT - (90.100.AC[03]) - VAR - 391216 - FRONT AXLE, SUSPENDED, HOOD, SIDE PANEL, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
2
1
2
5
7
6
90.100.au (01)
4
7
3
6

Артикул

Название

Примечание

Количество

1

84333982

PANEL

Lower Hood, LH, ASSY, Incl 2 - 7

1шт.

2

87325876

BRACKET

Hood Panel

2шт.

3

NSS

NOT SOLD SEPARAT

Panel, LH, Incl in 1

1шт.

4

15517201

SCREW

4шт.

5

87585593

FASTENER,9mm ID x 18mm OD

Hood Panel Retention

2шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

87313183

RETAINER

2шт.

Выбрано товаров: 7
