Запчасти Case IH PUMA 185 CVT (55.988.AF[01]) - VAR - 391131, 758001 - ELECTRONIC CONTROL UNIT, SUPPLY (55) - ELECTRICAL SYSTEMS

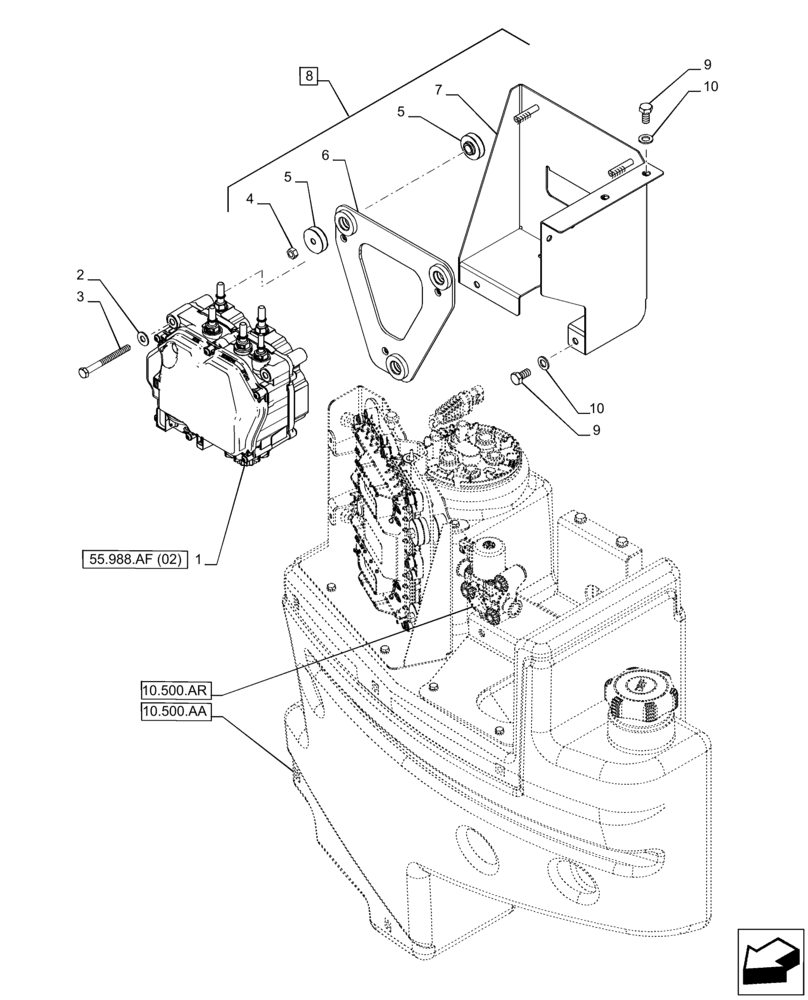

Схема запчастей Case IH PUMA 185 CVT - (55.988.AF[01]) - VAR - 391131, 758001 - ELECTRONIC CONTROL UNIT, SUPPLY (55) - ELECTRICAL SYSTEMS
10
10.500.ar
55.988.af (02)
5
9
9
10.500.aa
3
5
8
2
1
6
4
7
10

Артикул

Название

Примечание

Количество

1

47565934

ECU

Denox 2.2 Supply Module

1шт.

1

47565934R

REMAN ELECT CONTROL

Denox Supply

1шт.

1

47565934C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

3

15214221

BOLT,Hex, M8 x 85mm, Cl 8.8, Full Thd

3шт.

4

9706690

NUT,M8 x 1.25, Cl 8

3шт.

5

47381256

RUBBER BLOCK,8.5mm ID x 36mm OD x 10mm Thk

6шт.

6

47377322

BASE PLATE

1шт.

7

NSS

NOT SOLD SEPARAT

Support, Incl in 8

1шт.

8

47381209

SUPPORT

ASSY, Incl 4 - 7

1шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 12
