(90.102.AG[01]) - VAR - 391155, 758037, 758040 - ENGINE SHIELD, W/ TRAILER BRAKE VALVE

Запчасти Case IH PUMA 165 CVT (90.102.AG[01]) - VAR - 391155, 758037, 758040 - ENGINE SHIELD, W/ TRAILER BRAKE VALVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

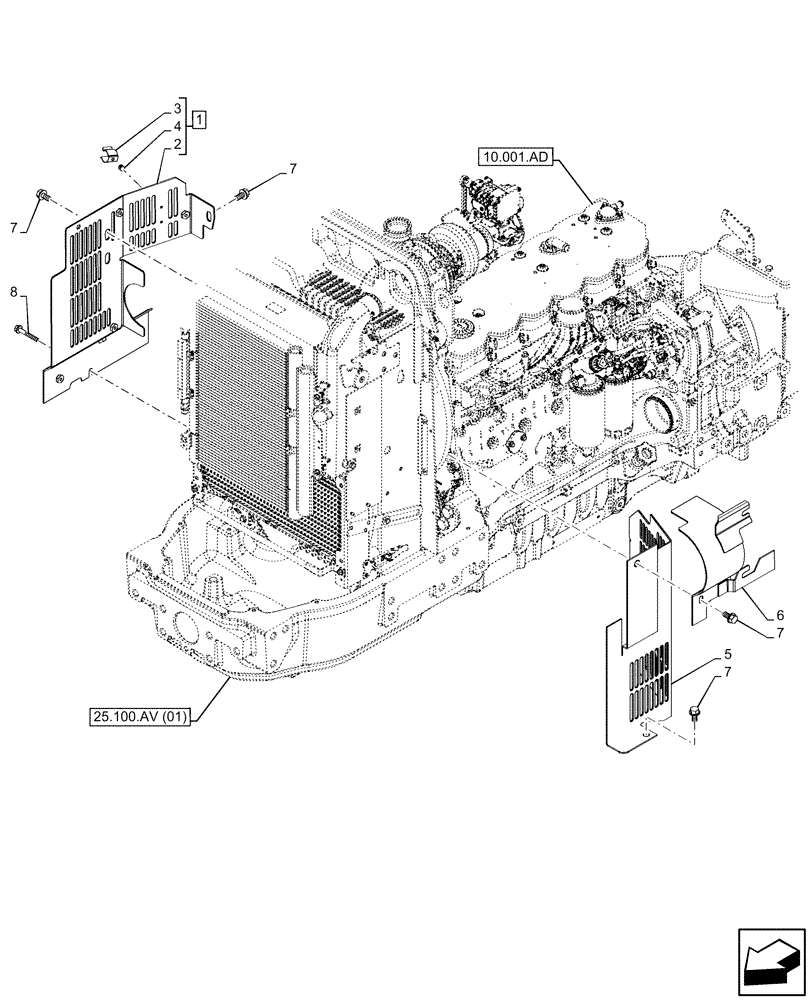

Схема запчастей Case IH PUMA 165 CVT - (90.102.AG[01]) - VAR - 391155, 758037, 758040 - ENGINE SHIELD, W/ TRAILER BRAKE VALVE (90) - PLATFORM, CAB, BODYWORK AND DECALS
25.100.av (01)
7
8
6
7
2
3
1
4
5
7
7
10.001.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47751410

GUARD

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Guard, Incl in 1

1шт.

3

47439927

SPRING CLIP,17-20mm OD

2шт.

4

14641891

RIVET,Tr Hd, M3.9 x 8.5, Aluminum

2шт.

5

84369773

GUARD

1шт.

6

84273493

GUARD

1шт.

7

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

8

47824196

SCREW,M6 x 45mm, Cl 8.8

1шт.

Выбрано товаров: 8
