Запчасти Case IH PUMA 165 CVT (90.102.AD[01]) - VAR - 391216, 758207, 758208, 758210, 758951 - ENGINE HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

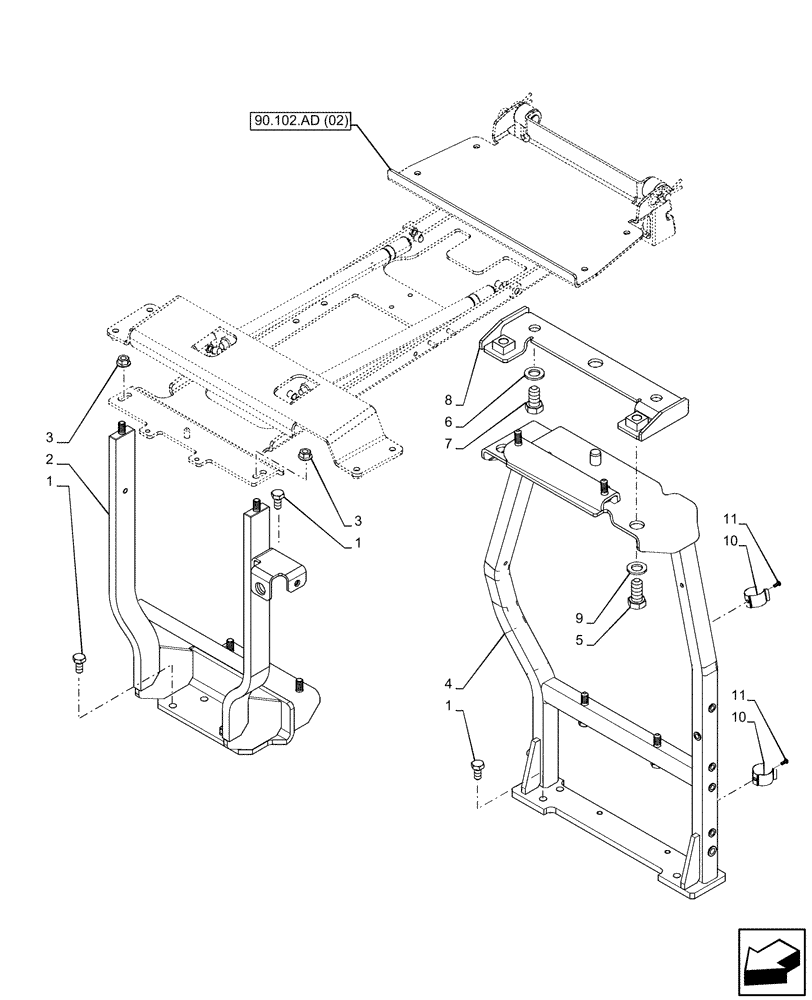

Схема запчастей Case IH PUMA 165 CVT - (90.102.AD[01]) - VAR - 391216, 758207, 758208, 758210, 758951 - ENGINE HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.102.ad (02)
6
1
3
10
5
1
8
7
10
4
1
9
3
2
11
11

Артикул

Название

Примечание

Количество

1

11106121

BOLT,Hex, M10 x 1.5 x 22mm, Cl 8.8, Full Thd

8шт.

2

47632455

SUPPORT

Hood, Front

1шт.

3

14059421

FLANGE NUT,Hex, M10 x 1.25, Cl. 10

M10 x 1.25

2шт.

4

47779207

SUPPORT

Hood Rear

1шт.

5

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

2шт.

6

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

7

11127421

BOLT,Hex, M16 x 30, 8.8, Full Thd

2шт.

8

84606693

BRACKET

1шт.

9

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

10

47439929

SPRING CLIP,26.0-30.0mm D

2шт.

11

47511292

SCREW,Hex, M4 x 0.7 x 10mm

2шт.

Выбрано товаров: 11
