Запчасти Case IH PUMA 165 CVT (50.100.AP[02]) - VAR - 391177, 391299, 391357, 759264, 759266 - AIR CONDITIONER, COMPONENTS (50) - CAB CLIMATE CONTROL

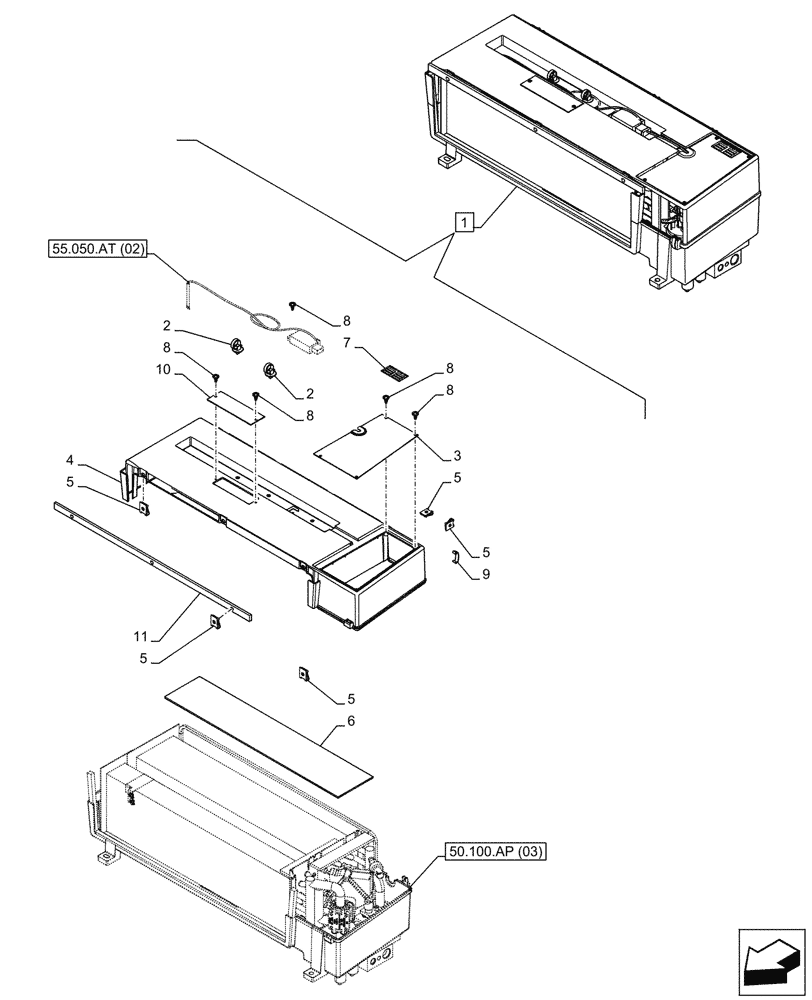

Схема запчастей Case IH PUMA 165 CVT - (50.100.AP[02]) - VAR - 391177, 391299, 391357, 759264, 759266 - AIR CONDITIONER, COMPONENTS (50) - CAB CLIMATE CONTROL
55.050.at (02)
8
5
10
8
3
2
2
5
9
5
11
8
6
8
1
5
7
4
8
5
50.100.ap (03)

Артикул

Название

Примечание

Количество

1

47490413

AIR CONDITIONER

ASSY, Mechanical with Electric Water, Incl 2 - 11

1шт.

See also Air Conditioner Components in Figure 50.100.AP (03), 55.050.AT (02), 50.200.CA, 50.100.AI

1шт.

2

84231993

ANCHOR

3шт.

3

84231981

PLATE

1шт.

4

87699545

HOUSING

1шт.

5

83907330

SPRING NUT

13шт.

6

82033109

SEAL,3mm Thk, Grey

1шт.

7

82029245

DECAL

1шт.

8

82028948

SCREW,M3 x 6mm

6шт.

9

82024392

CLIP,7mm W

4шт.

10

82024382

PLATE

1шт.

11

82024395

SEAL,536.1mm L x 5mm Thk

1шт.

Выбрано товаров: 12
