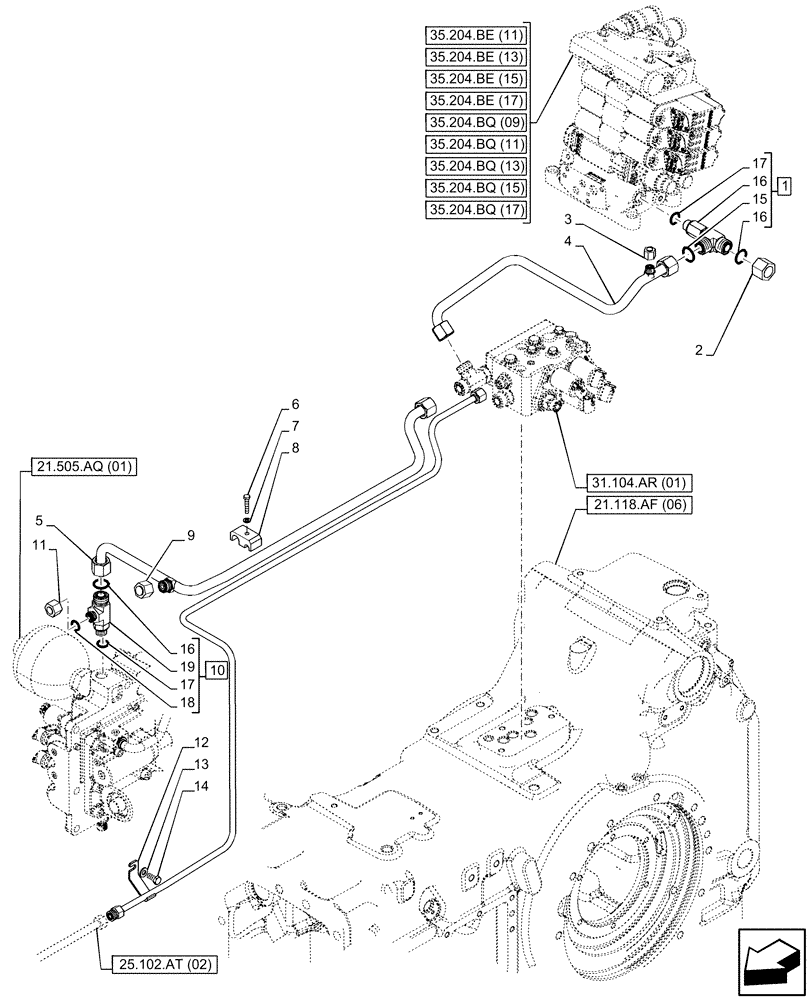

Запчасти Case IH PUMA 165 CVT (35.322.AY[16]) - VAR - 391138, 758022 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

1

87571078

HYD CONNECTOR,1"-14 x 1"-14 x M18 x 1.5

ASSY, Incl 15 - 17

1шт.

2

9840576

CAP,1" - 14 ORFS

1шт.

3

87668376

CAP,9/16"-18 Inch THD

1шт.

4

84280019

PRESSURE PIPE

Remote Valve

1шт.

5

84140134

PRESSURE PIPE

1шт.

6

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

7

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

8

87735418

CLAMP BRACKET

1шт.

9

9840575

CAP,13/16" - 16 ORFS

1шт.

10

5185049

TEE,1"-14 ORFS x 11/16-16 ORFS x M18 x 1.5 ORB

ASSY, Incl 16 - 19

1шт.

11

9625546

CAP,11/16" - 16 ORFS

1шт.

12

84140130

PRESSURE PIPE

Front Differential Lock

1шт.

13

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

14

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

19

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

1шт.
