(35.322.AY[15]) - VAR - 758091, 758093, 758245, 758046, 758247 - TRANSMISSION, LOW PRESSURE, LINE

Запчасти Case IH PUMA 165 CVT (35.322.AY[15]) - VAR - 758091, 758093, 758245, 758046, 758247 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

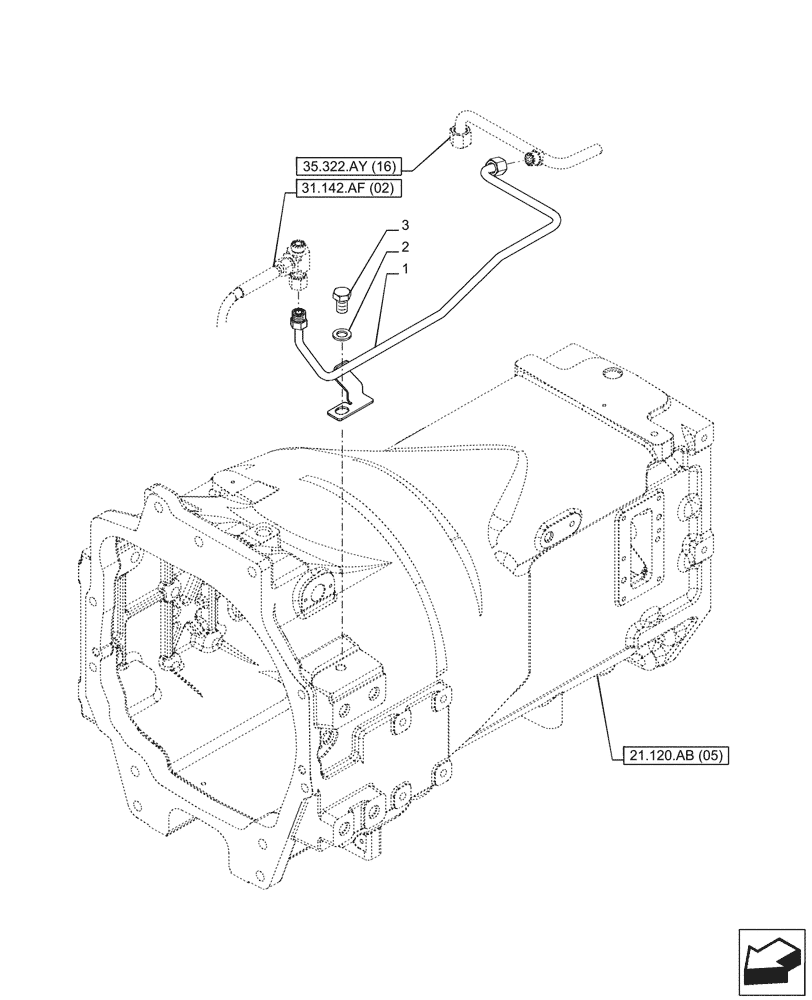

Схема запчастей Case IH PUMA 165 CVT - (35.322.AY[15]) - VAR - 758091, 758093, 758245, 758046, 758247 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS
31.142.af (02)
2
1
3
35.322.ay (16)
21.120.ab (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421859

BRAKE LINE

1шт.

2

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

3

374888

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 3
