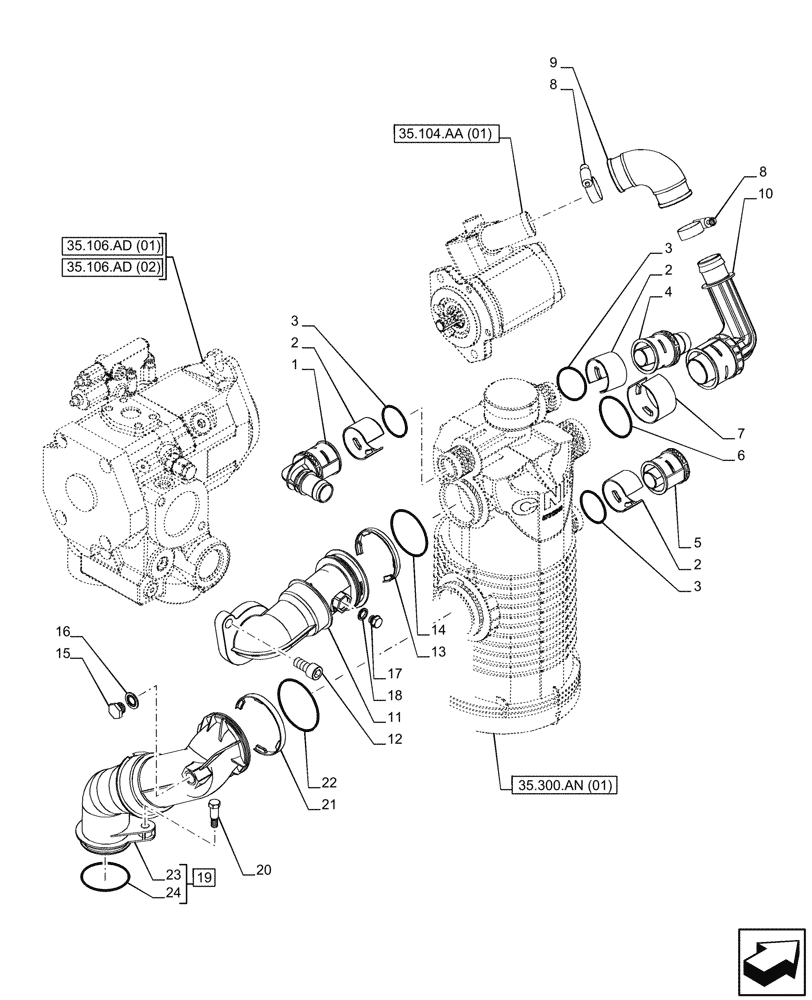

Запчасти Case IH PUMA 165 CVT (35.300.AJ[01]) - VAR - 391374, 391161, 758055, 758935 - OIL FILTER, LINE (35) - HYDRAULIC SYSTEMS

1

87608358

ELBOW,90 Deg, 22mm ID

1шт.

2

84121298

SNAP RING,30mm Thk, Ext

3шт.

3

87381700

O-RING,25.50mm ID x 2.53mm

3шт.

4

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

5

87330798

PLUG,46mm ID

1шт.

6

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

7

87330755

STOP DEVICE

1шт.

8

82039346

HOSE CLAMP,30mm - 45mm, Worm Gear

2шт.

9

87323539

ELBOW,90 Deg, 31mm ID x 45mm OD

1шт.

10

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

1шт.

11

47689910

SUCTION PIPE

1шт.

12

87016466

HEX SOC SCREW,M12 x 25mm, Cl 8.8, Full Thd

2шт.

13

87381696

SNAP RING,8mm Thk, Ext

1шт.

14

47715394

SEAL KIT

1шт.

15

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

16

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

17

87535222

PLUG,Hex, M10 x 1 x 13mm

1шт.

18

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

19

87395840

TUBE

Suction, ASSY, Incl 23, 24

1шт.

20

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

1шт.

21

87381695

CIRCLIP,8mm Thk

1шт.

22

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

23

87705158

GASKET KIT

1шт.

24

NSS

NOT SOLD SEPARAT

Tube, Incl in 19

1шт.
