Запчасти Case IH PUMA 165 CVT (35.204.BS[12]) - VAR - 758064 - 1 ELECTRONIC MID MOUNTED VALVES, LINE (35) - HYDRAULIC SYSTEMS

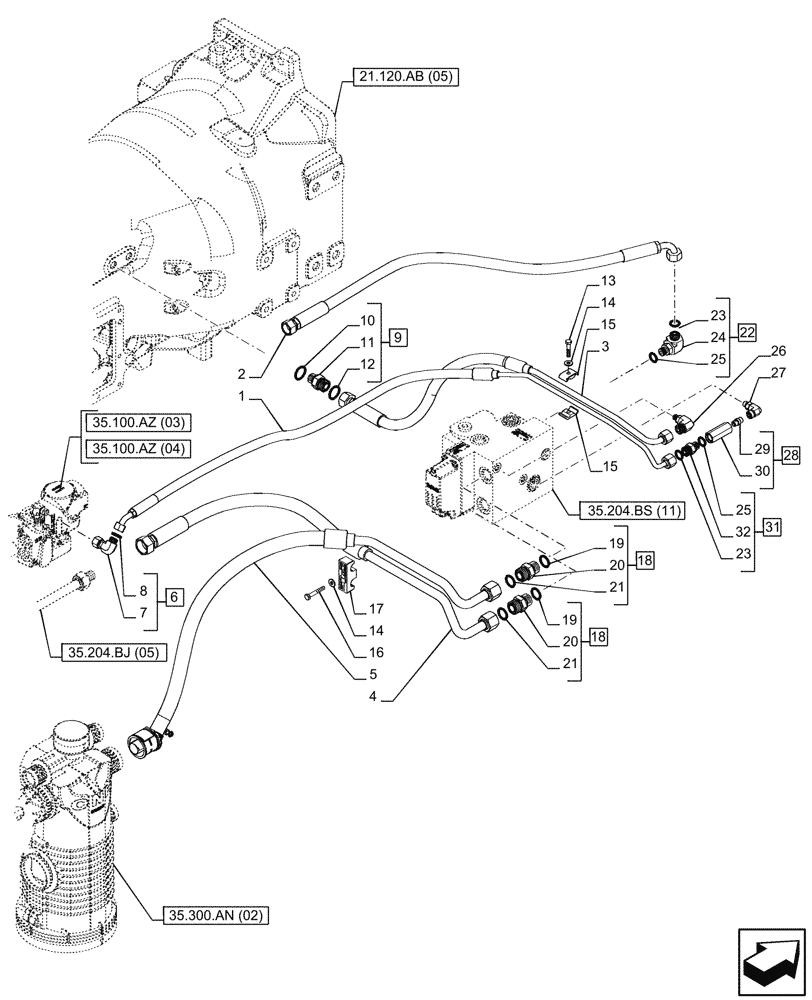

Схема запчастей Case IH PUMA 165 CVT - (35.204.BS[12]) - VAR - 758064 - 1 ELECTRONIC MID MOUNTED VALVES, LINE (35) - HYDRAULIC SYSTEMS
35.300.an (02)
25
32
20
11
23
20
15
21
19
24
1
9
14
18
23
2
3
21
17
13
29
16
30
27
7
5
18
6
26
15
19
12
14
28
25
31
10
8
4
22
35.204.bj (05)
21.120.ab (05)
35.100.az (04)
35.204.bs (11)
35.100.az (03)

Артикул

Название

Примечание

Количество

1

47526830

PIPE

Load Sense

1шт.

2

47526812

HOSE

Servo Supply

1шт.

3

47526834

PIPE

Servo Return

1шт.

4

47526832

PIPE

Supply

1шт.

5

47526800

PIPE

Return

1шт.

6

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Connector, Incl 10 - 12

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

12

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

13

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

14

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

15

47453770

BRACKET

2шт.

16

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

1шт.

17

87571442

BRACKET

1шт.

18

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 19 - 21

2шт.

19

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

1шт.

21

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

22

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 23 (Q.ty 1), 24, 25 (Q.ty 1)

1шт.

23

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

24

NSS

NOT SOLD SEPARAT

Elbow, Incl in 22

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

26

84553343

90 ELBOW,11/16"-16 ORFS x M10 X 1 ORB

1шт.

27

47541009

ELBOW,90 Deg, 9/16-18 ORFS x M10 x 1 ORB

1шт.

28

47398420

CHECK VALVE

ASSY, Incl 29, 30

1шт.

29

47398422

CHECK VALVE

1шт.

30

47398421

HYD CONNECTOR,9/16"-18 x M12 x 1.5

1шт.

31

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 23 (Q.ty 1), 25 (Q.ty 1), 32

1шт.

32

NSS

NOT SOLD SEPARAT

Connector, Incl in 31

1шт.

Выбрано товаров: 32
