Запчасти Case IH PUMA 165 CVT (35.204.BQ[18]) - VAR - 758061 - 5 REMOTE CONTROL VALVES (EHR), COMPONENTS (35) - HYDRAULIC SYSTEMS

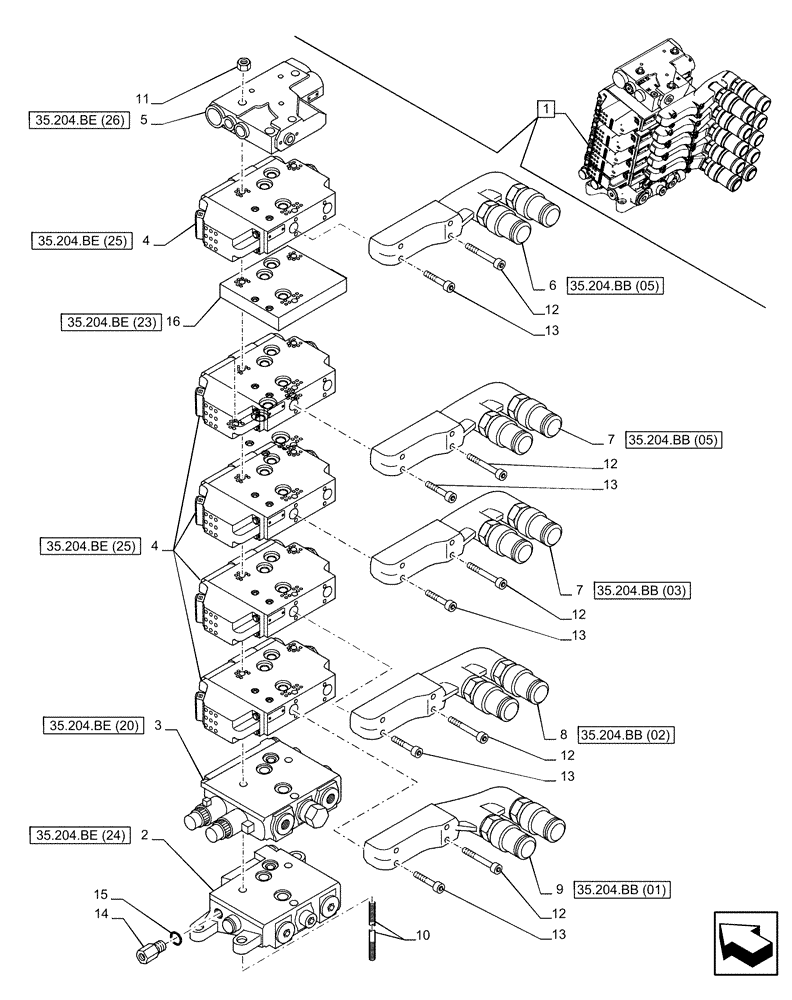

Схема запчастей Case IH PUMA 165 CVT - (35.204.BQ[18]) - VAR - 758061 - 5 REMOTE CONTROL VALVES (EHR), COMPONENTS (35) - HYDRAULIC SYSTEMS
35.204.be (26)
7
13
10
4
14
12
6
2
12
1
16
12
9
13
5
13
11
13
12
8
12
15
3
13
7
4
35.204.bb (02)
35.204.bb (01)
35.204.be (25)
35.204.be (25)
35.204.bb (03)
35.204.be (20)
35.204.be (24)
35.204.be (23)
35.204.bb (05)
35.204.bb (05)

Артикул

Название

Примечание

Количество

1

84230143

CONTROL VALVE

ASSY, Incl 2 - 16

1шт.

2

84142195

HYD VALVE SECTION

ASSY

1шт.

3

84175671

VALVE SECTION

ASSY

1шт.

4

84230181

HYD VALVE SECTION

ASSY

5шт.

5

84230200

HYD VALVE SECTION

ASSY

1шт.

6

87381965

QUICK MALE COUPLING

ASSY, Group 4

2шт.

7

87381964

QUICK MALE COUPLING

ASSY, Group 3

1шт.

8

87381963

QUICK MALE COUPLING

ASSY, Group 2

1шт.

9

87381958

QUICK MALE COUPLING

ASSY, Group 1

1шт.

10

84151302

TRUSS ROD,331mm L

3шт.

11

5195169

NUT,M8

M8

3шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 35

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35

6шт.

14

5191704

CHECK VALVE

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1

1шт.

16

84146808

PLATE

ASSY

1шт.

Выбрано товаров: 16
