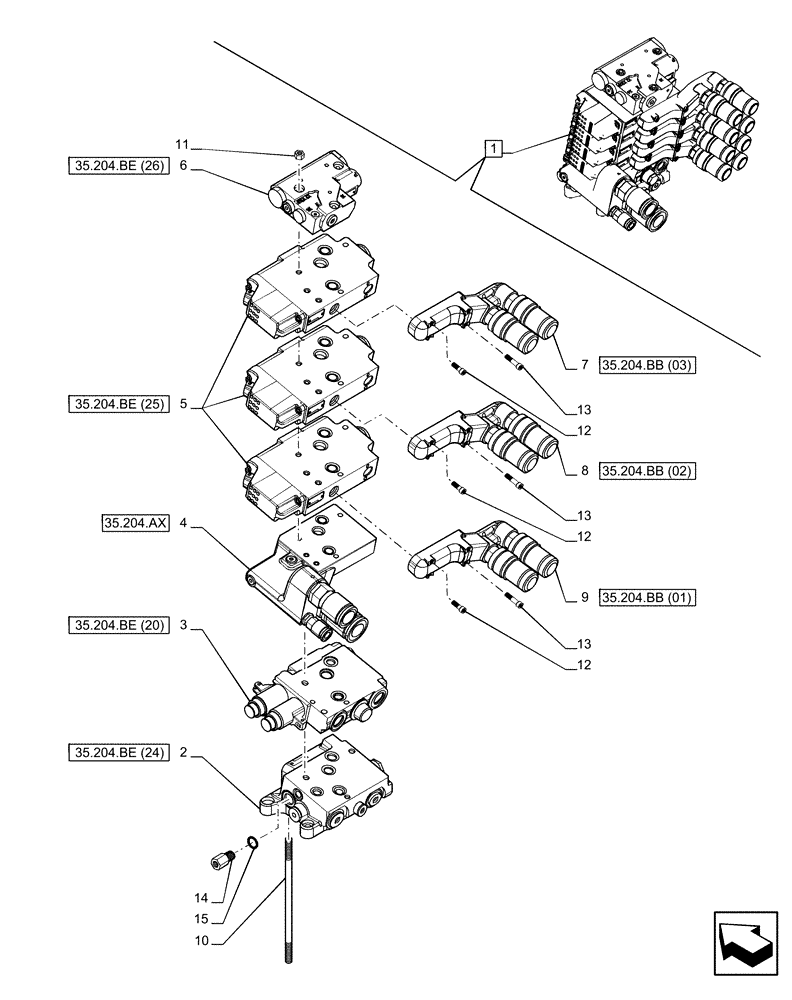

Запчасти Case IH PUMA 165 CVT (35.204.BQ[12]) - VAR - 391165, 758059 - 3 REMOTE CONTROL VALVES (EHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84230147

CONTROL VALVE

ASSY, Incl 2 - 15

1шт.

2

84142195

HYD VALVE SECTION

ASSY

1шт.

3

84175671

VALVE SECTION

ASSY

1шт.

4

84146807

HYD VALVE SECTION

ASSY

1шт.

5

84230181

HYD VALVE SECTION

ASSY

3шт.

6

84230200

HYD VALVE SECTION

ASSY

1шт.

7

87381964

QUICK MALE COUPLING

ASSY, Group 3

1шт.

8

87381963

QUICK MALE COUPLING

ASSY, Group 2

1шт.

9

87381958

QUICK MALE COUPLING

ASSY, Group 1

1шт.

10

47129473

THREADED TIE-ROD

3шт.

11

5195169

NUT,M8

M8

3шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35

6шт.

13

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 35

6шт.

14

5191704

CHECK VALVE

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1

1шт.
