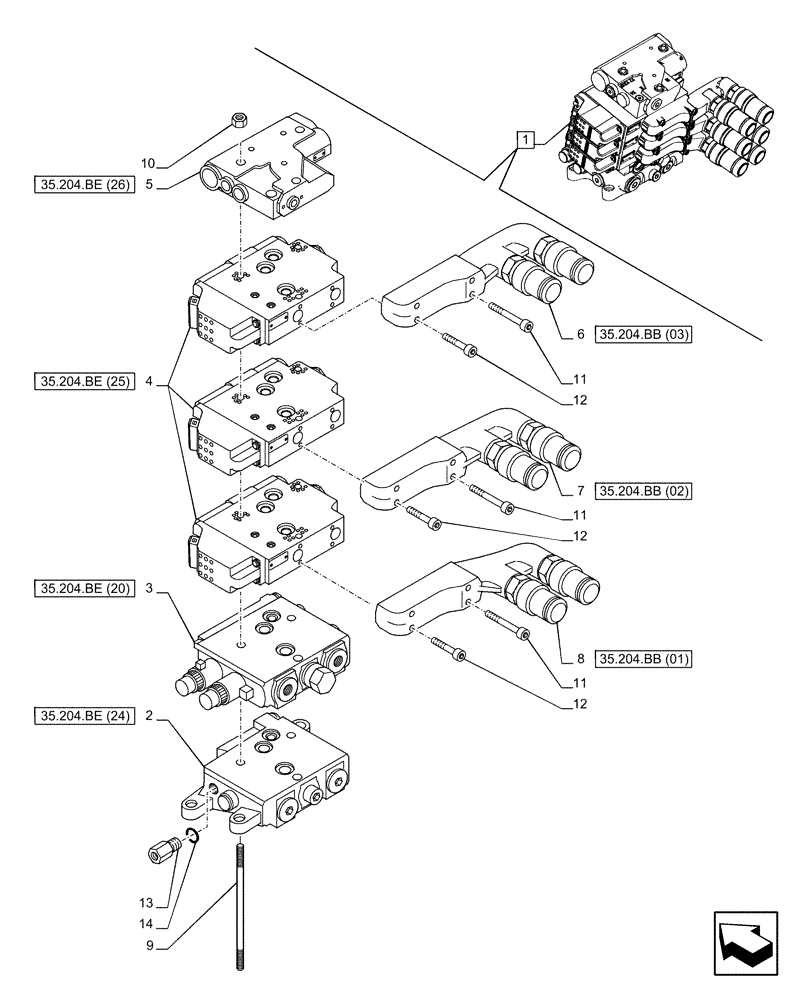

Запчасти Case IH PUMA 165 CVT (35.204.BQ[10]) - VAR - 391165, 758059 - 3 REMOTE CONTROL VALVES (EHR), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84230145

CONTROL VALVE

ASSY, Incl 2 - 14

1шт.

2

84142195

HYD VALVE SECTION

ASSY

1шт.

3

84175671

VALVE SECTION

ASSY

1шт.

4

84230181

HYD VALVE SECTION

ASSY

3шт.

5

84230200

HYD VALVE SECTION

ASSY

1шт.

6

87381964

QUICK MALE COUPLING

ASSY, Group 3

1шт.

7

87381963

QUICK MALE COUPLING

ASSY, Group 2

1шт.

8

87381958

QUICK MALE COUPLING

ASSY, Group 1

1шт.

9

47131731

TIE-ROD,235mm L

3шт.

10

5195169

NUT,M8

M8

3шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 35

6шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35

6шт.

13

5191704

CHECK VALVE

1шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1

1шт.
