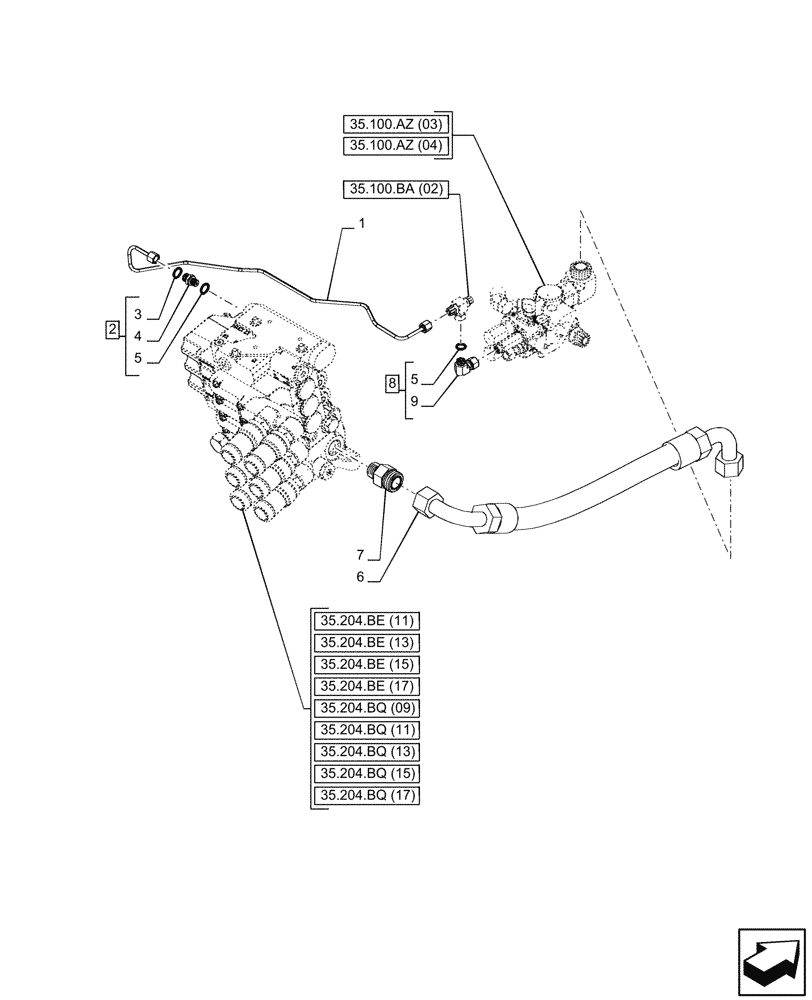

Запчасти Case IH PUMA 165 CVT (35.204.BJ[04]) - VAR - 391138, 758022 - REMOTE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47659953

PIPE

Load Sense

1шт.

2

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 3 - 5 (Qty 1)

1шт.

3

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

6

84344954

HOSE,25.40mm ID x 635.00mm, SAE 100R12

1шт.

7

84405439

HYD CONNECTOR,1" 7/16 - 12 - M27 x 2

1шт.

8

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 5 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.
