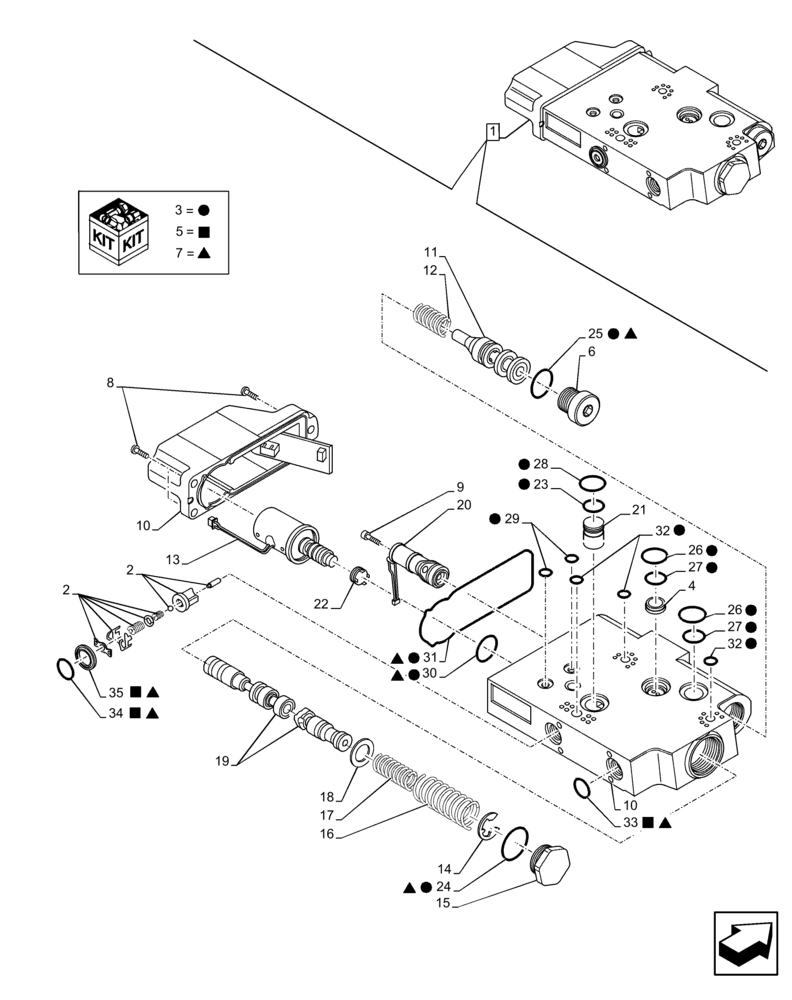

Запчасти Case IH PUMA 165 CVT (35.204.BE[25]) - VAR - 391165, 758059, 758060, 758061 - CONTROL VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84230181

HYD VALVE SECTION

ASSY, Incl 2 - 35

3шт.

2

84270832

KIT

1шт.

3

84270830

SEAL KIT

Incl 23 - 32

1шт.

4

84279974

VALVE POPPET

1шт.

5

84125422

SEAL KIT

Incl 33 - 35

1шт.

6

47129438

PLUG

1шт.

7

84270831

SEAL KIT

Incl 24, 25, 30, 31, 33 - 35

1шт.

8

84340200

SCREW,Phillips Drive, Pan HD, M5 x 18mm, Cl 10.9

3шт.

9

14304631

HEX SOC SCREW,M5 x 14mm, Cl 10.9, Full Thd

2шт.

10

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Locking Washer, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Spring Disk, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Coil, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Strainer, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, 14.8 x 1

1шт.

24

NSS

NOT SOLD SEPARAT

O-Ring, 29.4 x 2.1 HNBR

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, 19.4 x 2.1 HNBR

1шт.

26

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15

2шт.

27

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 2.5 HNBR

2шт.

28

NSS

NOT SOLD SEPARAT

O-Ring, 20 x 2.5 HNBR

1шт.

29

NSS

NOT SOLD SEPARAT

O-Ring, 8 x 2 HNBR

2шт.

30

NSS

NOT SOLD SEPARAT

O-Ring, 23 x 2.5 HNBR

1шт.

31

NSS

NOT SOLD SEPARAT

Sealing Frame

1шт.

32

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04

3шт.

33

NSS

NOT SOLD SEPARAT

O-Ring, 15 x 2.5 HNBR

1шт.

34

NSS

NOT SOLD SEPARAT

O-Ring, 17 x 2.5 HNBR

1шт.

35

NSS

NOT SOLD SEPARAT

Washer

1шт.
