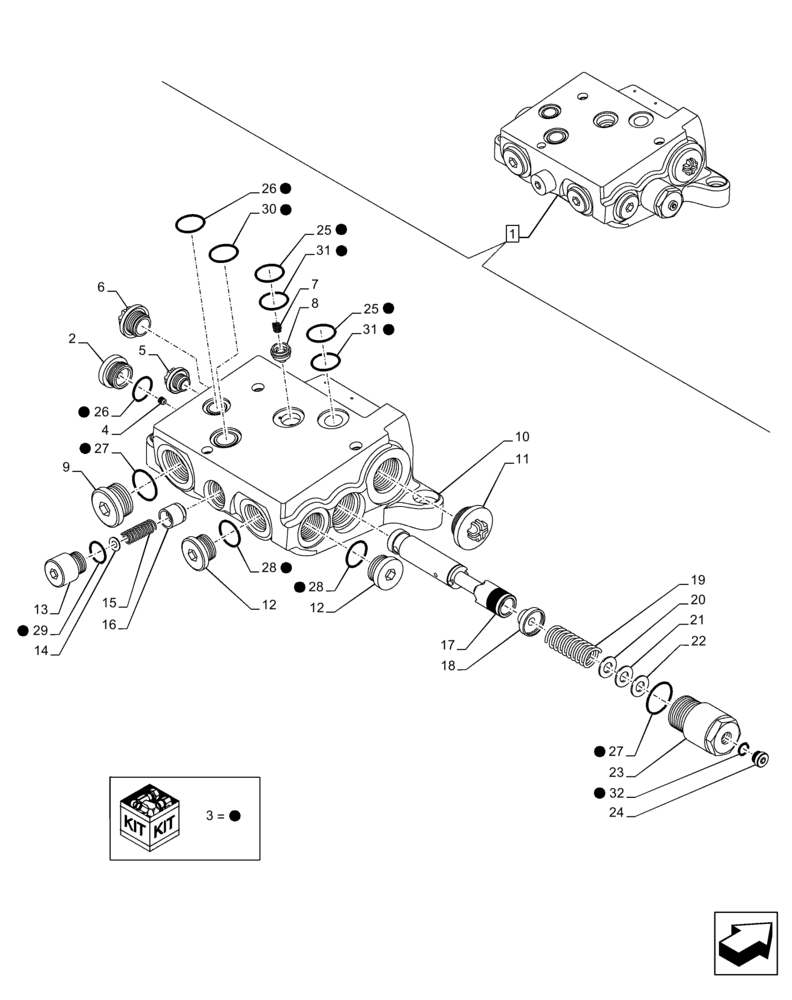

Запчасти Case IH PUMA 165 CVT (35.204.BE[24]) - VAR - 391164, 391165, 758058, 758059, 758060, 758061 - CONTROL VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84142195

HYD VALVE SECTION

ASSY, Incl 2 - 32

1шт.

2

47129472

PLUG

1шт.

3

47129468

SEAL KIT

Incl 25 - 32

1шт.

4

NSS

NOT SOLD SEPARAT

Throttle Screw, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Closure Cap, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Protective Cap, Incl in 1

1шт.

7

47129466

SPRING

1шт.

8

5191716

VALVE

1шт.

9

47129449

PLUG,M27 x 2 x 19mm L

1шт.

10

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Closure Cap, Incl in 1

1шт.

12

47129438

PLUG

2шт.

13

47129465

PLUG

1шт.

14

47126929

SHIM,6.50mm ID x 11.50mm OD x 0.50mm

1шт.

14

47126930

SHIM,6.50mm ID x 11.50mm OD x 0.10mm

1шт.

15

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Valve Cone, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

1шт.

18

47126924

SPRING SEAT

1шт.

19

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

20

84127069

SHIM

1шт.

21

84127098

WASHER

1шт.

22

84127099

SHIM,12.10mm ID x 20.00mm OD x 0.10

1шт.

23

84152095

PLUG

1шт.

24

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, 24.5 x 2.15 HNBR

2шт.

26

NSS

NOT SOLD SEPARAT

O-Ring, 17 x 2.5 HNBR

2шт.

27

NSS

NOT SOLD SEPARAT

O-Ring, 23.7 x 2.8 HNBR

2шт.

28

NSS

NOT SOLD SEPARAT

O-Ring, 19.4 x 2.1 HNBR

2шт.

29

NSS

NOT SOLD SEPARAT

O-Ring, 15.4 x 2.1 HNBR

1шт.

30

NSS

NOT SOLD SEPARAT

O-Ring, 20 x 2.5 HNBR

1шт.

31

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 2.5 HNBR

2шт.

32

NSS

NOT SOLD SEPARAT

O-Ring, 6.1 x 1.6 HNBR

1шт.
