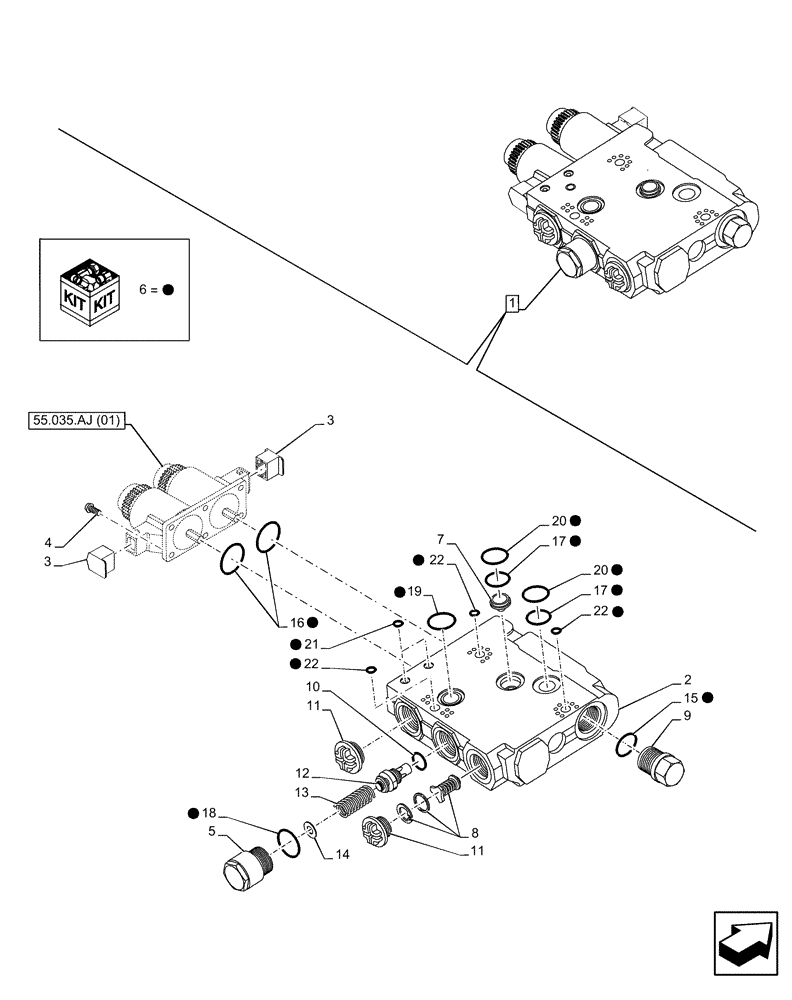

Запчасти Case IH PUMA 165 CVT (35.204.BE[20]) - VAR - 391163, 391164, 391165, 758057, 758058, 758059, 758060, 758061 - CONTROL VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84175671

VALVE SECTION

ASSY, Incl 2 - 22

1шт.

See also Figure 55.035.AJ (01)

1шт.

2

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Protective Cap, Incl in 1

2шт.

4

47129409

SET SCREW,Oval Head

6шт.

5

47129410

PLUG,Hex, 29.2mm OD

1шт.

6

84312718

SEAL KIT

Incl 15 - 22

1шт.

7

84127100

SHUT-OFF VALVE

1шт.

8

84232107

REPAIR KIT

1шт.

9

87531487

PLUG

1шт.

10

87531495

O-RING,12.00mm ID x 1.75mm

1шт.

11

NSS

NOT SOLD SEPARAT

Protective Cap, Incl in 1

2шт.

12

47129415

INSERT

1шт.

13

47129411

SPRING

1шт.

14

47129406

SHIM,0.30mm T

1шт.

14

47129407

SHIM,0.40mm T

1шт.

14

47129416

SHIM,0.80mm T

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring, 21.4 x 2.1 HNBR

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, 28 x 2 HNBR

2шт.

17

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 2.5 HNBR

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, 23 x 2.5 HNBR

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, 20 x 2.5 HNBR

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, 24.5 x 2.15 HNBR

2шт.

21

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04 HNBR

1шт.

22

NSS

NOT SOLD SEPARAT

1шт.
