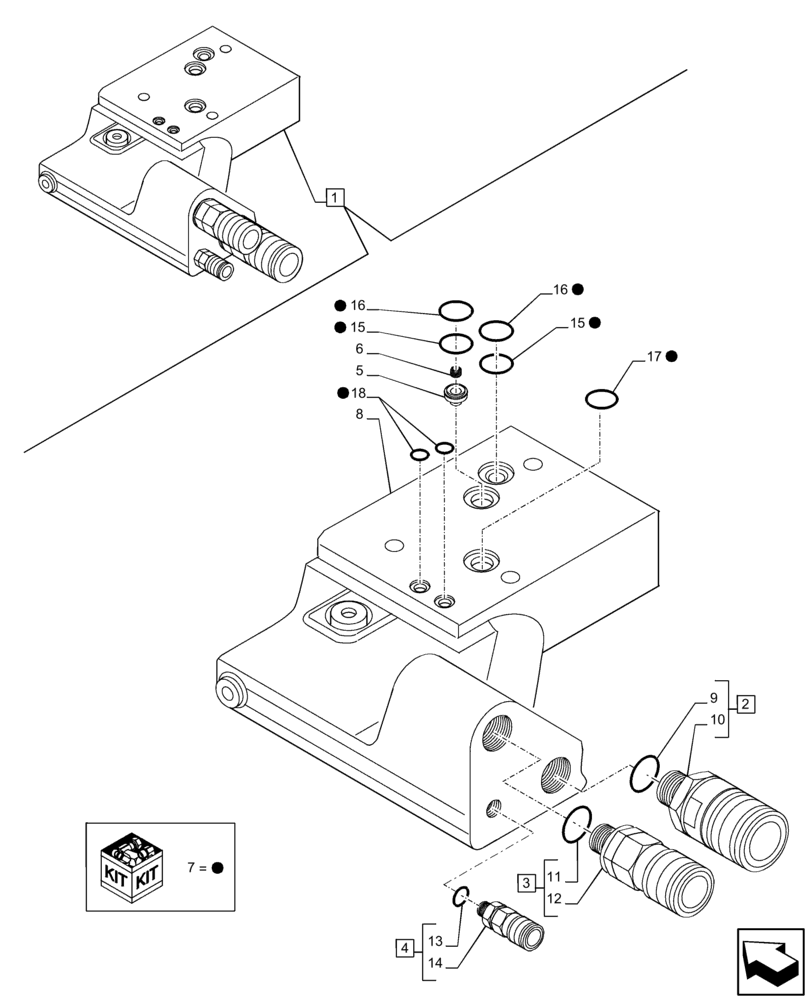

Запчасти Case IH PUMA 165 CVT (35.204.AX) - VAR - 391165, 758057, 758058, 758059, 758060 - POWER BEYOND VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84146807

HYD VALVE SECTION

ASSY, Incl 2 - 18

1шт.

2

87310811

PUSH-PULL COUPLING

ASSY, Incl 9, 10

1шт.

3

87310813

PUSH-PULL COUPLING

ASSY, Incl 11, 12

1шт.

4

87310816

PUSH-PULL COUPLING

ASSY, Incl 13, 14

1шт.

5

5191716

VALVE

1шт.

6

47129466

SPRING

1шт.

7

84151927

SEAL KIT

Incl 15 - 18

1шт.

8

NSS

NOT SOLD SEPARAT

Intermediate Plate, Incl in 1

1шт.

9

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Coupling, Incl in 2

1шт.

11

14438185

O-RING,24mm ID x 3mm

1шт.

12

NSS

NOT SOLD SEPARAT

Coupling, Incl in 3

1шт.

13

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

14

NSS

NOT SOLD SEPARAT

Coupling, Incl in 4

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 2.5 HNBR

2шт.

16

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15

2шт.

17

NSS

NOT SOLD SEPARAT

O-Ring, 20 x 2.5 HNBR

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, 8 x 2 HNBR

2шт.
