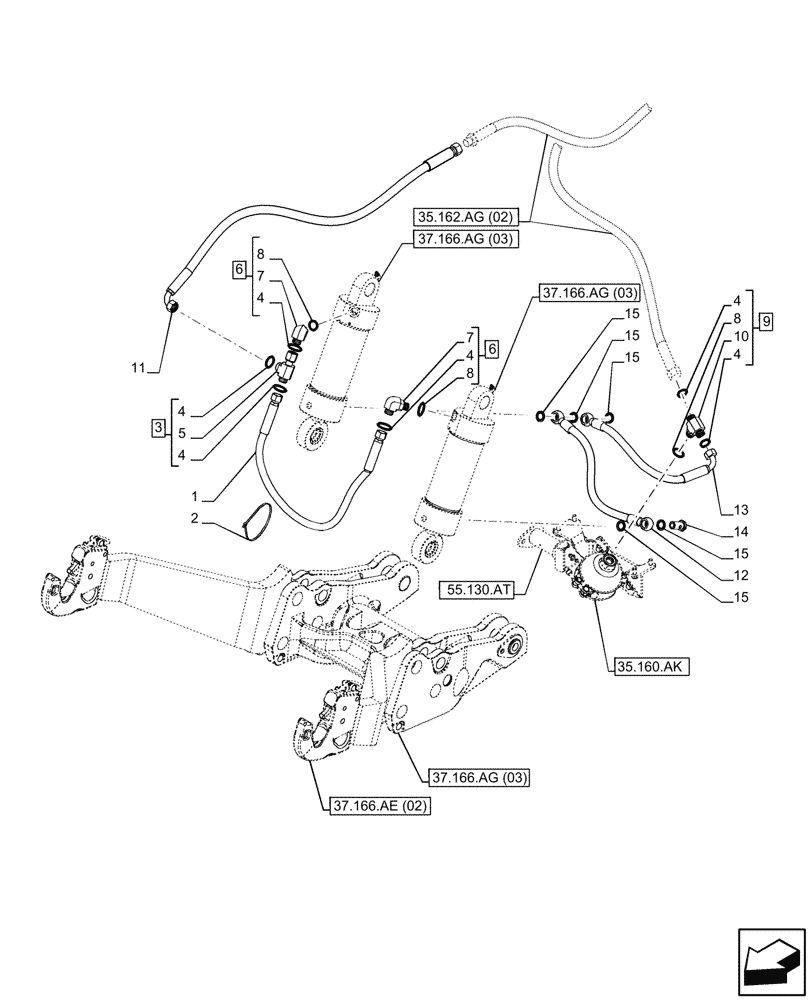

Запчасти Case IH PUMA 165 CVT (35.162.AG[01]) - VAR - 758088, 758089, 758090, 758091, 758092, 758093, 758245, 758246, 758247 - 3 POINT HITCH, FRONT, INTEGRATED HYDRAULIC LIFT, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

47399301

FLEXIBLE HOSE,10mm ID x 750mm L

10mm ID x 750mm, Bypass Hose

1шт.

2

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

1шт.

3

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 4 (Qty 2), 5

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

6

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 4 (Qty 1), 7, (Qty 1), 8 (Qty 1)

2шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

2шт.

8

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

9

86579710

TEE,13/16"-16 ORFS x M18 x 1.5 ORB Br

ASSY, Incl 4 (Qty 2), 8, (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Tee, Incl in 9

1шт.

11

84284811

FLEXIBLE HOSE,10.00mm ID x 570.00mm, SAE 100R16

Lower Gront Hydraulic Power Lift

1шт.

12

84284813

FLEXIBLE HOSE,10.00mm ID x 430.00mm, SAE 100R16

Cylinder Raise

1шт.

13

84284812

FLEXIBLE HOSE,10.00mm ID x 430.00mm, SAE 100R16

from Cylinder to Accumulator

1шт.

14

5170235

BANJO BOLT,M18 x 1.5 x 35mm

1шт.

15

87495058

SEAL,Washer, 15.40mm ID x 26.00mm OD x 0.70mm, R50

5шт.
