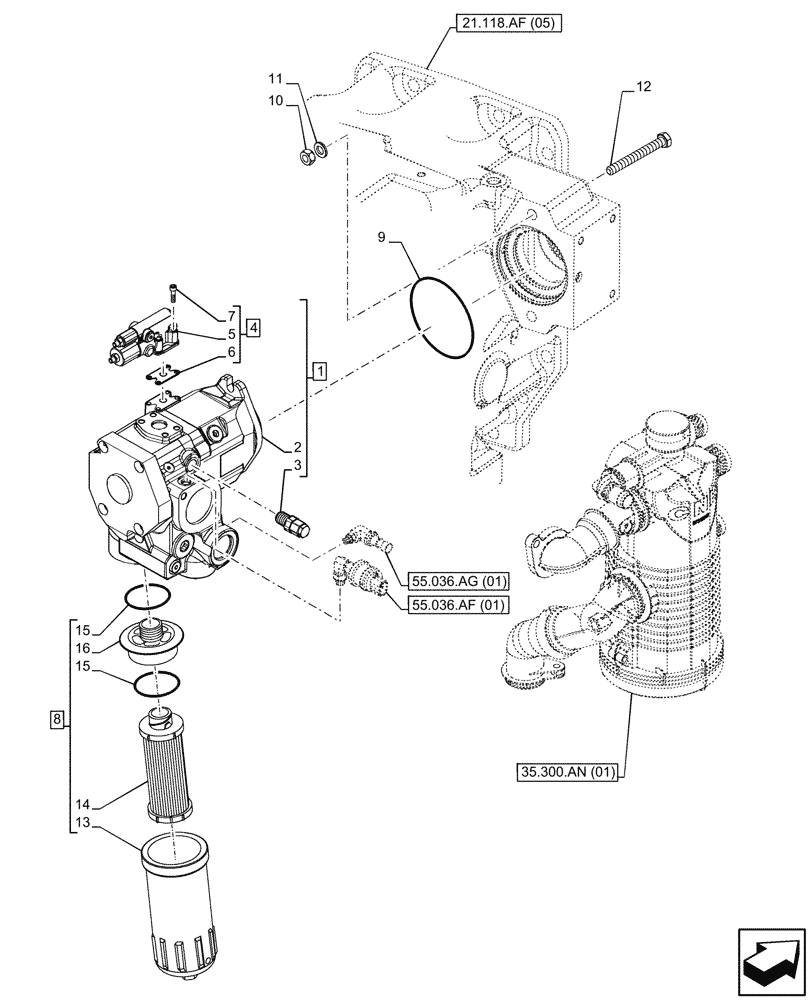

Запчасти Case IH PUMA 165 CVT (35.106.AD[02]) - VAR - 758055, 758935 - VARIABLE DELIVERY HYDRAULIC PUMP, 160 L/MIN (35) - HYDRAULIC SYSTEMS

1

84353124

PUMP,Gear, 63 CC / 82 CC

ASSY, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

4шт.

3

47511121

VALVE PRESSURE RELIE

1шт.

4

47616157

COMPENSATOR

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Controller, Incl in 4

1шт.

6

84209778

GASKET

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Incl in 4

4шт.

8

84341286

HYDRAULIC OIL FILTER,289.5mm L

ASSY, Incl 13 - 16

1шт.

AFTER THE FIRST 50 HOURS REPLACE THE FILTER WITH: PN 84417137 - Housing / PN 84417139 - Filter Cartridge / PN 84550359 - Filter O Ring; FOR OTHER TIME REPLACE THE FILTER WITH: PN 84417139 - Filter Cartridge / PN 84550359 - Filter O Ring

1шт.

9

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

10

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

11

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

12

15978124

BOLT,Hex, M14 x 1.5 x 120mm, Cl 8.8

2шт.

13

84417137

FILTER BOWL

1шт.

14

84417139

ELEMENT,267.5mm L, 11 Micron

1шт.

15

84550359

O-RING,84.50mm ID x 3.00mm

2шт.

16

NSS

NOT SOLD SEPARAT

Adapter, Incl in 8

1шт.
