Запчасти Case IH PUMA 165 CVT (35.100.AZ[05]) - VAR - 758037, 758039, 758040, 758042, 758044 - TRAILER BRAKE VALVE (35) - HYDRAULIC SYSTEMS

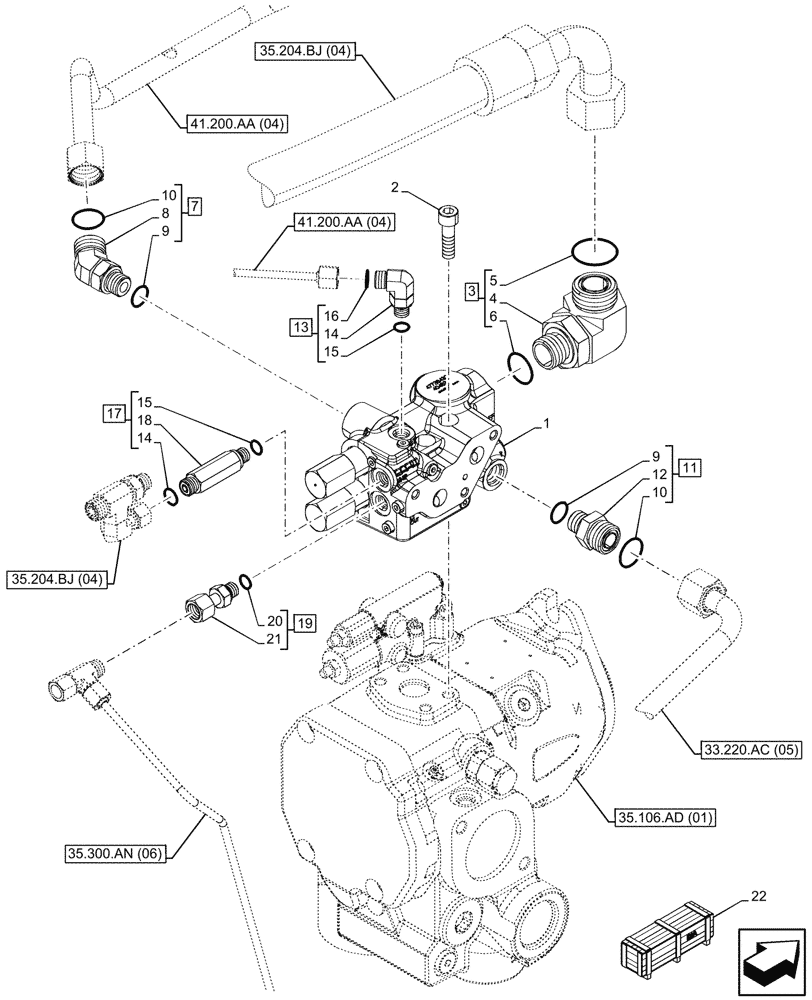

Схема запчастей Case IH PUMA 165 CVT - (35.100.AZ[05]) - VAR - 758037, 758039, 758040, 758042, 758044 - TRAILER BRAKE VALVE (35) - HYDRAULIC SYSTEMS
35.204.bj (04)
18
10
15
22
17
1
20
6
14
13
10
14
12
5
4
9
3
19
21
15
7
2
16
9
8
11
33.220.ac (05)
35.106.ad (01)
41.200.aa (04)
41.200.aa (04)
35.300.an (06)
35.204.bj (04)

Артикул

Название

Примечание

Количество

1

47738432

VALVE

1шт.

2

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

7

84270256

FITTING

ASSY, Incl 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

11

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 8, 9, 12

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

13

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

1шт.

14

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

16

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

17

84270265

FITTING,M12 x 1.5 x 9/16"-18

ASSY, Incl 14, 15, 18

1шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

1шт.

19

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

ASSY, Incl 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

1шт.

21

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

22

710414134

DIA KIT, TRACTOR

Trailer Brake Valve, Incl 1 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
