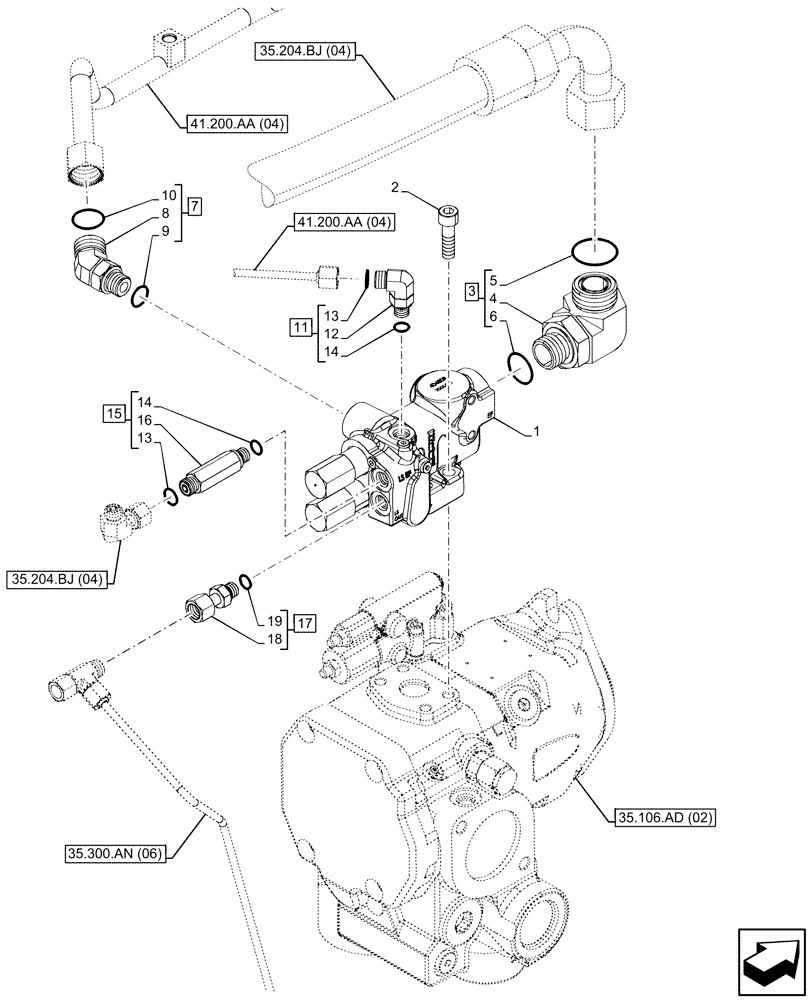

Запчасти Case IH PUMA 165 CVT (35.100.AZ[01]) - VAR - 391155, 748038, 748041, 748043 - PRIORITY VALVE (35) - HYDRAULIC SYSTEMS

1

84263753

HYDRAULIC VALVE

1шт.

2

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

7

84270256

FITTING

ASSY, Incl 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

13

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

14

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

15

84270265

FITTING,M12 x 1.5 x 9/16"-18

ASSY, Incl 13, 14, 16

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

1шт.

17

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

ASSY, Incl 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

1шт.

19

14437685

O-RING,9.30mm ID x 2.40mm

1шт.
