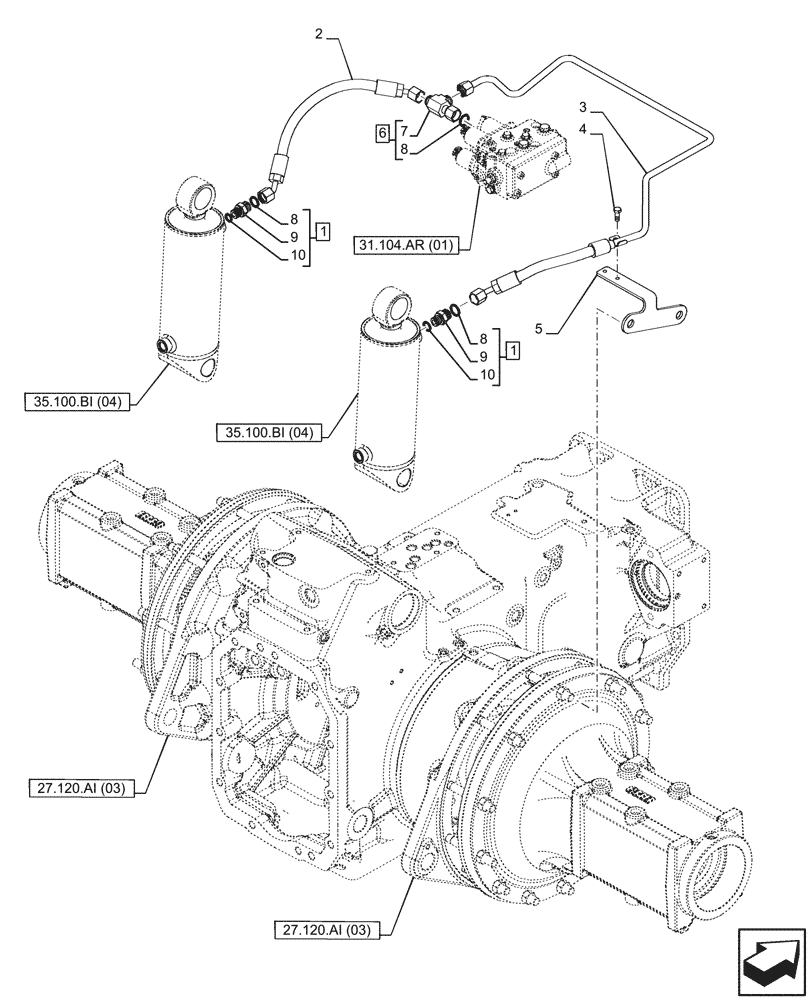

Запчасти Case IH PUMA 165 CVT (35.100.AR[06]) - VAR - 391138, 758022 - LIFT CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 8 (Qty 1) - 10

2шт.

2

84140196

HYDRAULIC HOSE

LH, Lube Cylinder

1шт.

3

84349377

PRESSURE PIPE

RH Lube Cylinder

1шт.

4

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

5

84174056

BRACKET

1шт.

6

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 7, 8 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
