Запчасти Case IH PUMA 165 CVT (33.220.AC[02]) - VAR - 758037, 758039, 758044 - TRAILER BRAKE VALVE, LINE, UNIVERSAL (33) - BRAKES & CONTROLS

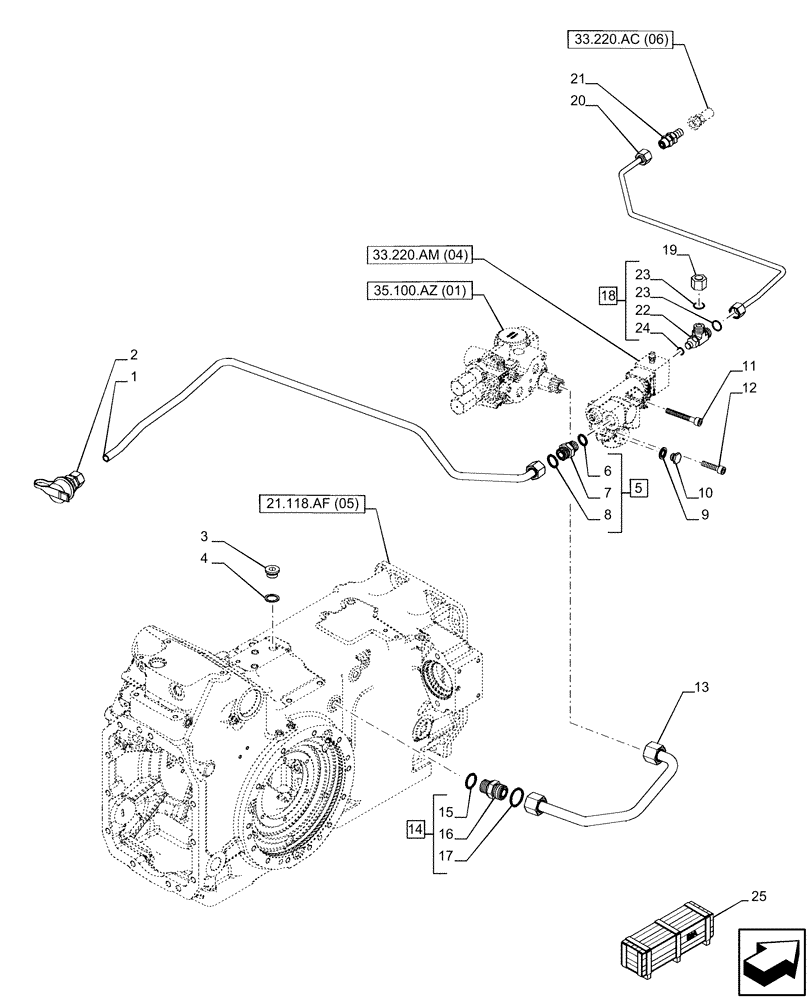

Схема запчастей Case IH PUMA 165 CVT - (33.220.AC[02]) - VAR - 758037, 758039, 758044 - TRAILER BRAKE VALVE, LINE, UNIVERSAL (33) - BRAKES & CONTROLS
24
21.118.af (05)
9
23
20
8
5
7
25
21
17
3
19
14
13
11
33.220.am (04)
18
16
6
35.100.az (01)
4
23
22
10
15
1
2
33.220.ac (06)
12

Артикул

Название

Примечание

Количество

1

5196175

BRAKE VALVE

Incl 2 - 4

1шт.

1

84344234

PRESSURE PIPE

Supply TBV

1шт.

2

5196170

BLOCK

1шт.

2

44015354

QUICK MALE COUPLING

1шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

3

10273111

PLUG,M18 x 1.5 x 13

1шт.

4

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 6 - 8

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

8

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

10

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

11

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

12

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

1шт.

13

84372459

HYD TUBE

Tank

1шт.

14

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 15 - 17

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

17

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

ASSY, Incl 22 - 24

1шт.

19

9625546

CAP,11/16" - 16 ORFS

1шт.

20

47370349

PIPE

1шт.

21

87711901

HYD CONNECTOR

1шт.

22

NSS

NOT SOLD SEPARAT

Tee, Incl in 18

1шт.

23

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

24

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

2шт.

25

710414134

DIA KIT, TRACTOR

Trailer Brake Valve, Incl 1 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 30
