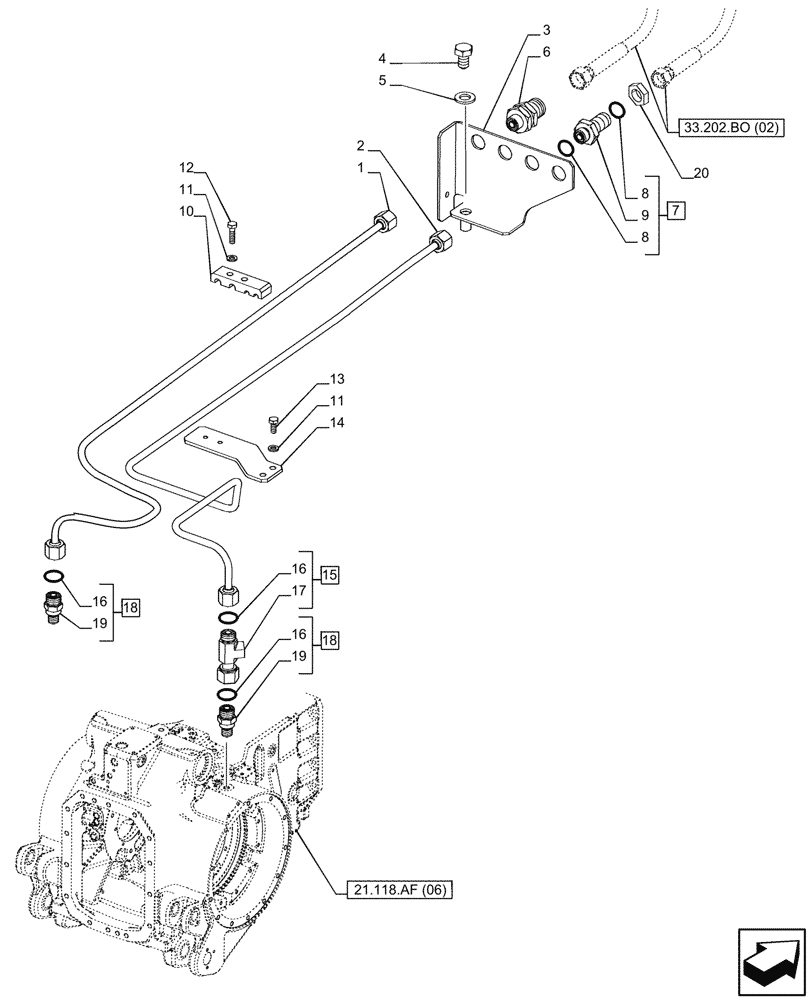

Запчасти Case IH PUMA 165 CVT (33.202.AP[03]) - VAR - 391138, 758022, 758869, 758870 - BRAKE LINE, CVT (33) - BRAKES & CONTROLS

1

87733771

BRAKE LINE

LH

1шт.

2

84349449

BRAKE LINE

RH

1шт.

3

84270264

SUPPORT

1шт.

4

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

6

87711900

HYD CONNECTOR

1шт.

7

86978770

UNION,11/16"-6, ORFS

ASSY, Incl 8, 9

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

84349461

ANCHOR

1шт.

11

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

12

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

2шт.

13

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

14

84416080

BRACKET

1шт.

15

87681989

HYD CONNECTOR,11/16"-16 x M12 x 1 x 11/16"-16

ASSY, Incl 16 (Qty 1), 17

1шт.

16

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

18

47131549

FITTING,M12 x 1.5

ASSY, Incl 16 (Qty 1), 19

2шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

1шт.

20

87010704

BHD LOCK NUT,11/16"-16

1шт.
