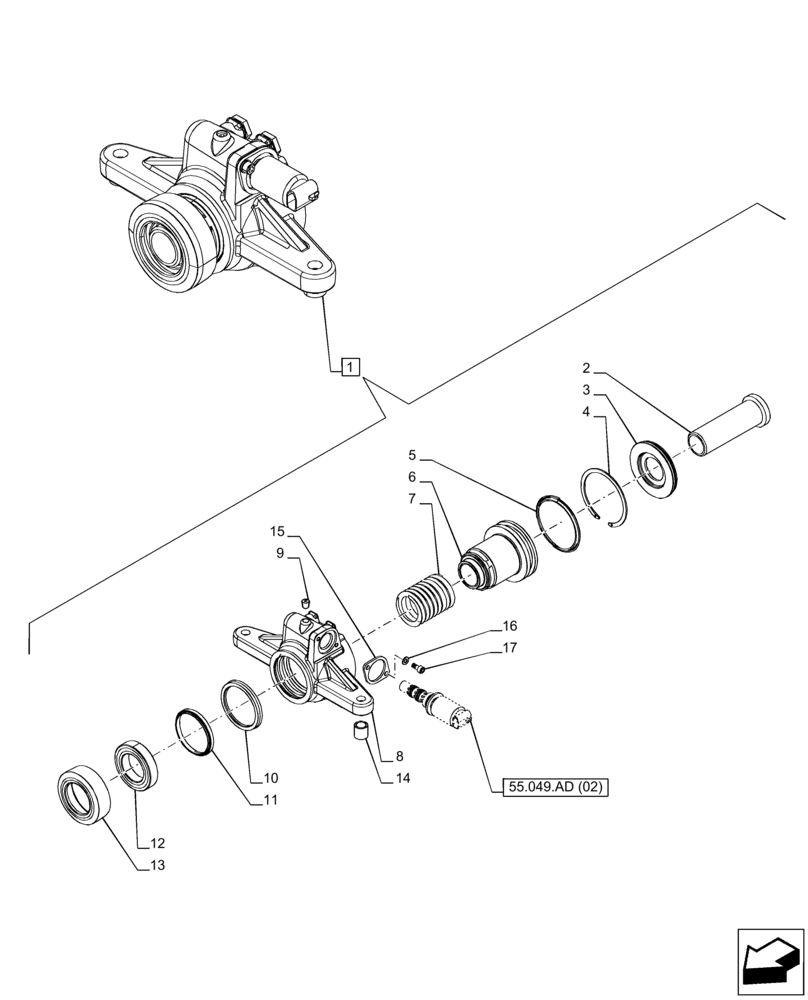

Запчасти Case IH PUMA 165 CVT (31.142.AA[02]) - VAR - 758091, 758093, 758245, 758247, 758248 - FRONT PTO ASSY, ACTUATOR, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

1

47057804

CYLINDER

ASSY, Incl 2 - 17

1шт.

2

47057766

BOLT,M39 x 4 x 120mm

1шт.

3

5196283

PLUG,39.5mm ID x 89.60-89.82mm OD x 10mm Thk

1шт.

4

5196244

CIRCLIP,82.00mm x 94.00mm x 2.00mm

1шт.

5

5196267

SEAL,80.00mm ID x 90.00mm OD x 7.00mm

1шт.

6

5196281

PISTON

1шт.

7

5196266

SPRING,55mm OD x 128mm L

1шт.

8

47057597

CYLINDER

1шт.

9

14326150

PLUG,M8 x 1.25mm

1шт.

10

5196268

SEAL,65mm ID x 77mm OD x 8.5mm Thk

1шт.

11

5196284

SEAL,65.00mm ID x 73.60mm OD x 5.30mm

1шт.

12

5196275

BALL BEARING,45.00mm x 75.00mm x 16.00mm

1шт.

13

5196271

BEARING CARRIER

1шт.

14

4966279

BUSHING,14.2mm ID x 20mm OD x 20.2mm L

2шт.

15

5194826

BRACKET

1шт.

16

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

17

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.
