(31.116.AL[03]) - VAR - 758023 - PTO 540E/1000/1000E RPM, W/ GROUND SPEED, REAR, SHAFT

Запчасти Case IH PUMA 165 CVT (31.116.AL[03]) - VAR - 758023 - PTO 540E/1000/1000E RPM, W/ GROUND SPEED, REAR, SHAFT (31) - IMPLEMENT POWER TAKE OFF

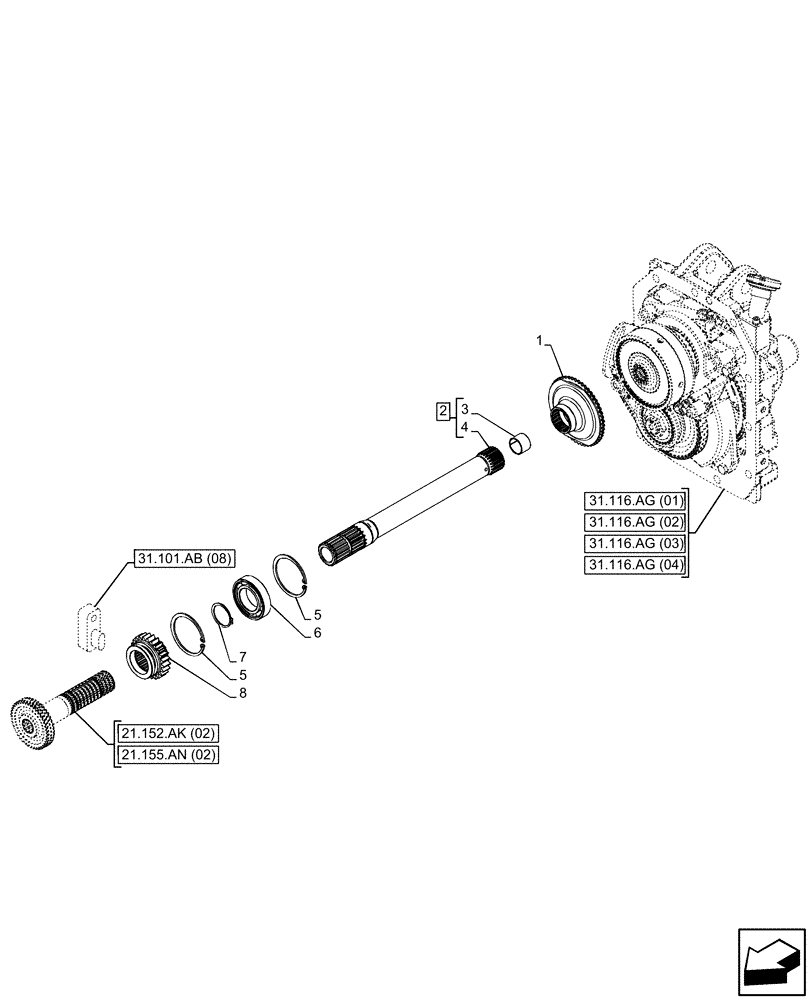

Схема запчастей Case IH PUMA 165 CVT - (31.116.AL[03]) - VAR - 758023 - PTO 540E/1000/1000E RPM, W/ GROUND SPEED, REAR, SHAFT (31) - IMPLEMENT POWER TAKE OFF
31.101.ab (08)
7
5
21.152.ak (02)
5
8
4
6
3
2
1
31.116.ag (01)
31.116.ag (04)
31.116.ag (02)
21.155.an (02)
31.116.ag (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5198546

HUB,50T

1шт.

2

87373863

PTO SHAFT

ASSY, Rear, Incl 3, 4

1шт.

3

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

31.99mm ID x 36mm OD x 25mm

1шт.

4

NSS

NOT SOLD SEPARAT

Shaft, Incl in 2

1шт.

5

11062476

SNAP RING,M90, Int

2шт.

6

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.

7

11069376

SNAP RING,M50, Ext

3шт.

8

5153151

GEAR,18T, 24T

1шт.
