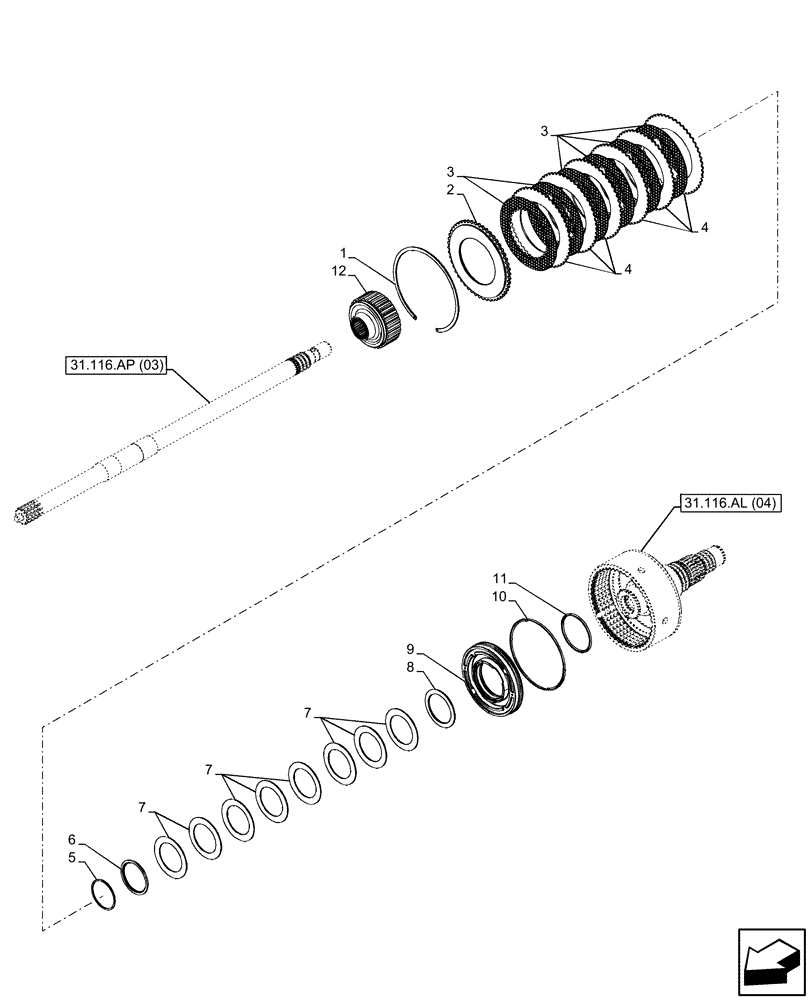

Запчасти Case IH PUMA 165 CVT (31.116.AH[01]) - VAR - 391139, 758023, 758024, 759429 - PTO 540/540E/1000 RPM, PTO 540E/1000/1000E RPM, CLUTCH (31) - IMPLEMENT POWER TAKE OFF

1

5162251

CIRCLIP,142.5mm ID

1шт.

2

5198545

CLUTCH PLATE,89mm ID x 152.6mm OD x 7.5mm Thk

1шт.

3

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

6шт.

4

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

6шт.

5

5191305

CIRCLIP,54mm ID

1шт.

6

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

7

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

8шт.

8

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

9

5198547

PISTON

1шт.

10

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

11

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

12

87374253

HUB,Z32

Z 32

1шт.
