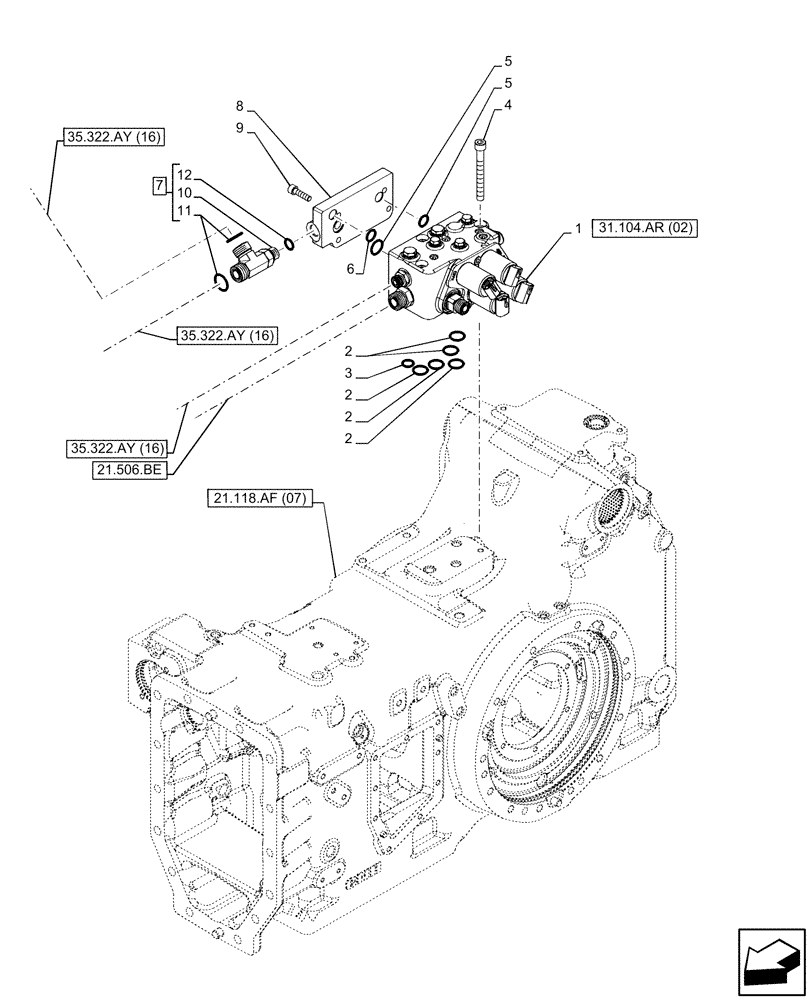

Запчасти Case IH PUMA 165 CVT (31.104.AR[01]) - VAR - 391138, 758022 - PTO, CONTROL VALVE (31) - IMPLEMENT POWER TAKE OFF

1

84336448

CONTROL VALVE

ASSY

1шт.

2

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5шт.

3

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

4

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

5

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

6

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

7

5197177

TEE,1"-14 ORFS x 1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 10 - 12

1шт.

8

5197061

PLATE

1шт.

9

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

4шт.

10

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
