(31.101.AC[01]) - VAR - 391139 - PTO 540/540E/1000 RPM, CONTROL LEVER

Запчасти Case IH PUMA 165 CVT (31.101.AC[01]) - VAR - 391139 - PTO 540/540E/1000 RPM, CONTROL LEVER (31) - IMPLEMENT POWER TAKE OFF

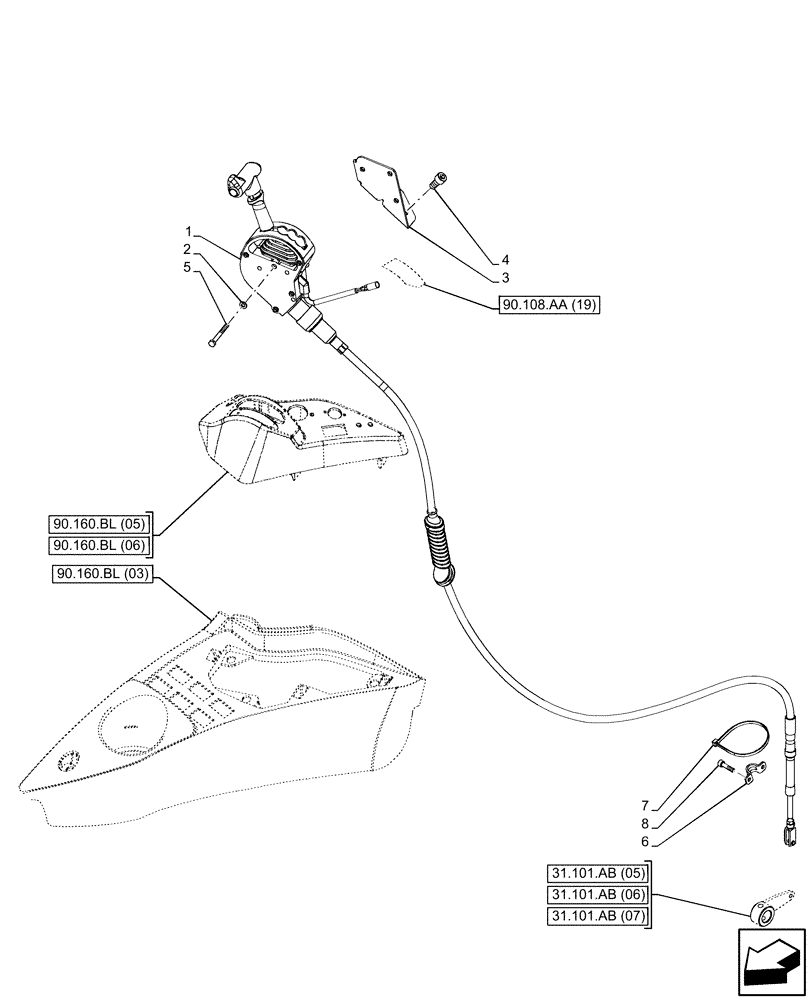

Схема запчастей Case IH PUMA 165 CVT - (31.101.AC[01]) - VAR - 391139 - PTO 540/540E/1000 RPM, CONTROL LEVER (31) - IMPLEMENT POWER TAKE OFF
31.101.ab (05)
5
8
1
3
6
4
2
7
90.160.bl (03)
31.101.ab (07)
90.108.aa (19)
31.101.ab (06)
90.160.bl (06)
90.160.bl (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84219586

CONTROL

3 Speed PTO

1шт.

2

10571579

LOCK WASHER,M6

3шт.

3

87474950

SUPPORT

1шт.

4

14307374

BOLT,Hex Skt, M10 x 1.25 x 20mm, Cl 12.9, Full Thd

3шт.

5

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

3шт.

6

82026579

CLAMP,44.4mm L x 16mm W

1шт.

7

14560287

CABLE TIE,207.00mm L

1шт.

8

14305424

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

2шт.
