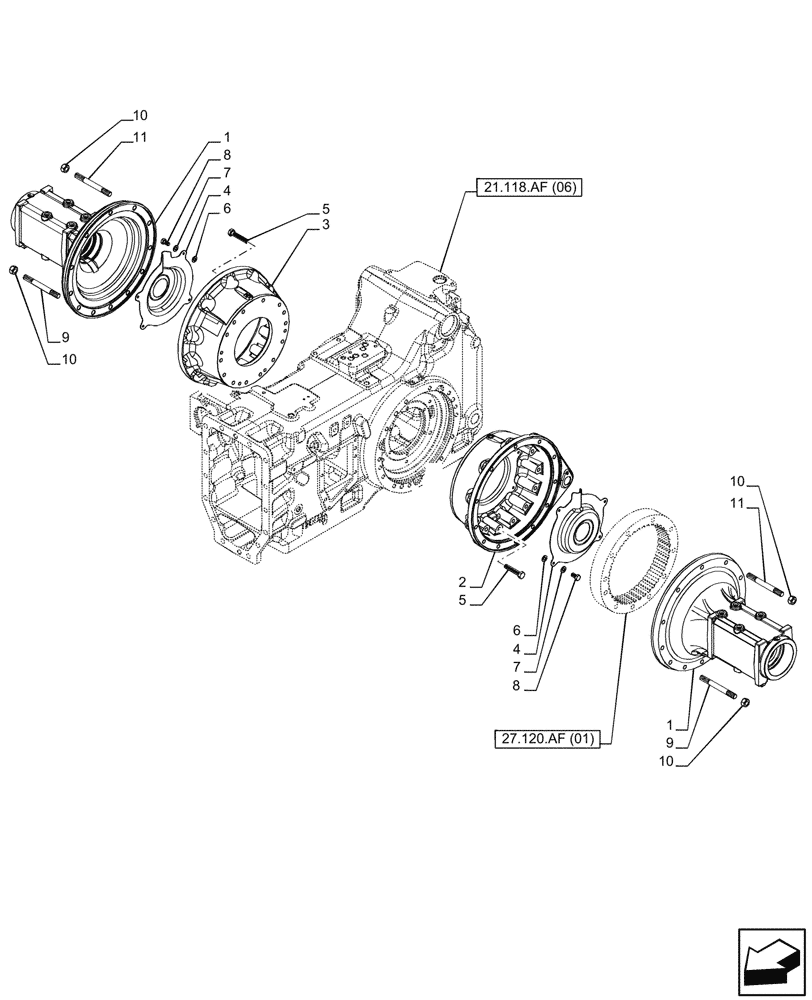

Запчасти Case IH PUMA 165 CVT (27.120.AI[03]) - VAR - 391158, 758052, 758053 - FINAL DRIVE HOUSING, CVT (27) - REAR AXLE SYSTEM

1

87585077

AXLE CARRIER

2шт.

2

84264264

HOUSING

LH

1шт.

3

84264261

SPACER,211mm ID x 500mm OD x 171mm L

RH

1шт.

4

87683205

COVER

2шт.

5

47830733

SCREW,M14 x 1.5 x 140mm, Cl 10.9

24шт.

6

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

24шт.

7

11193870

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

8

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

9

13973430

STUD,M16 x 1.5 x 22.00mm x 110.00mm, Cl 10.9, PLN

21шт.

10

12164124

NUT,M16 x 1.5, Cl 8

24шт.

11

13973630

STUD,M16 x 1.5 x 32mm x 120mm, Cl 10.9

3шт.
