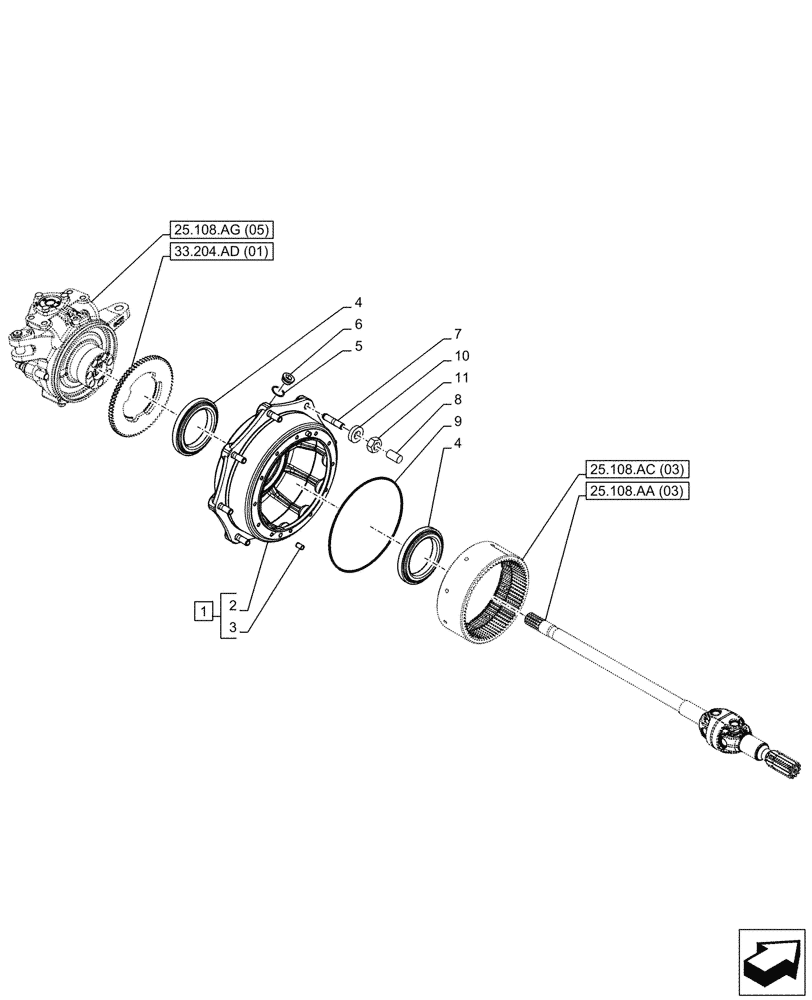

Запчасти Case IH PUMA 165 CVT (25.108.AN[03]) - VAR - 758046 - FRONT AXLE, SUSPENSION W/BRAKES, WHEEL, HUB (25) - FRONT AXLE SYSTEM

1

47698439

HUB

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Hub, Incl in 1

1шт.

3

4985063

DOWEL,12mm OD x 20mm L

1шт.

4

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

2шт.

5

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

1шт.

6

10278340

PLUG,M28 x 1.5 x 11, Brass

1шт.

7

87618916

STUD

8шт.

8

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

8шт.

9

14469481

O-RING,10.984" ID x 11.262" OD x 0.139"

1шт.

10

47630556

WASHER,17.0mm ID x 25.4mm OD x 3.4mm Thk

17.0mm ID x 25.4mm OD x 3.4mm Thk

8шт.

11

10790524

NUT,M16 x 1.5

8шт.
