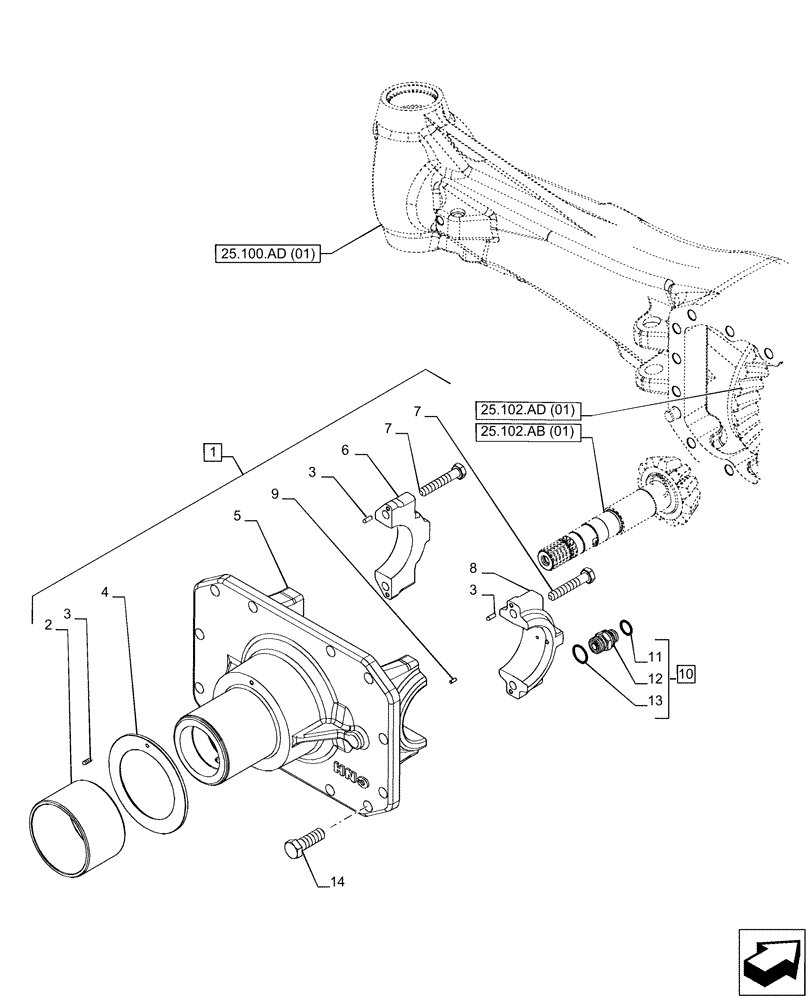

Запчасти Case IH PUMA 165 CVT (25.102.AC[01]) - VAR - 391156 - 4WD FRONT AXLE, DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM

1

87329356

SUPPORT

ASSY, Incl 2 - 9

1шт.

2

5136116

BUSHING,105mm ID x 115.56mm OD x 72mm L

105 x 115.5 x 72

1шт.

3

4966244

PIN,5mm OD x 15mm L

5шт.

4

5136115

RING,105.3mm ID x 148mm OD x 5mm Thk

105 x 148

1шт.

5

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

7

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

8

NSS

NOT SOLD SEPARAT

Keep, Incl in 1

1шт.

9

10333210

DOWEL,M4 x 10.00mm

1шт.

10

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

ASSY, Incl 11 - 13

1шт.

11

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

13

87008S95

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.
