(23.314.AH[05]) - VAR - 391213 - 4WD FRONT AXLE, DRIVE SHAFT, SHIELD, W/O WATERPROOF

Запчасти Case IH PUMA 165 CVT (23.314.AH[05]) - VAR - 391213 - 4WD FRONT AXLE, DRIVE SHAFT, SHIELD, W/O WATERPROOF (23) - FOUR WHEEL DRIVE SYSTEM

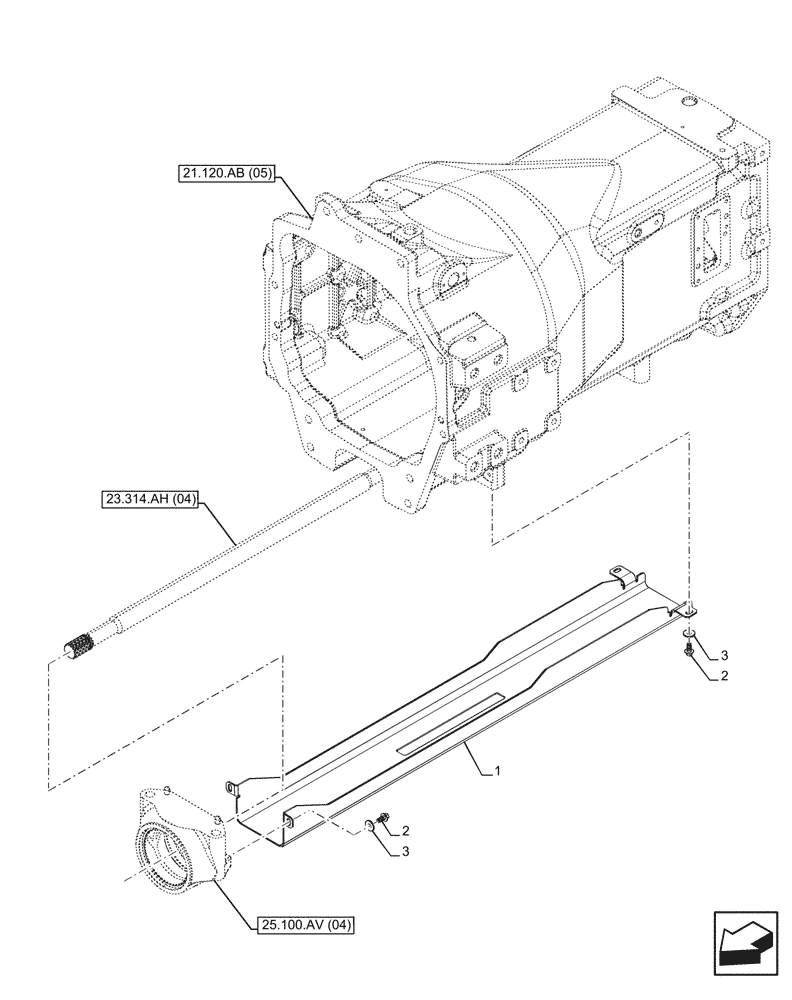

Схема запчастей Case IH PUMA 165 CVT - (23.314.AH[05]) - VAR - 391213 - 4WD FRONT AXLE, DRIVE SHAFT, SHIELD, W/O WATERPROOF (23) - FOUR WHEEL DRIVE SYSTEM
21.120.ab (05)
3
2
3
1
2
23.314.ah (04)
25.100.av (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87389033

SHIELD

1шт.

2

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

4шт.

3

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.

Выбрано товаров: 3
