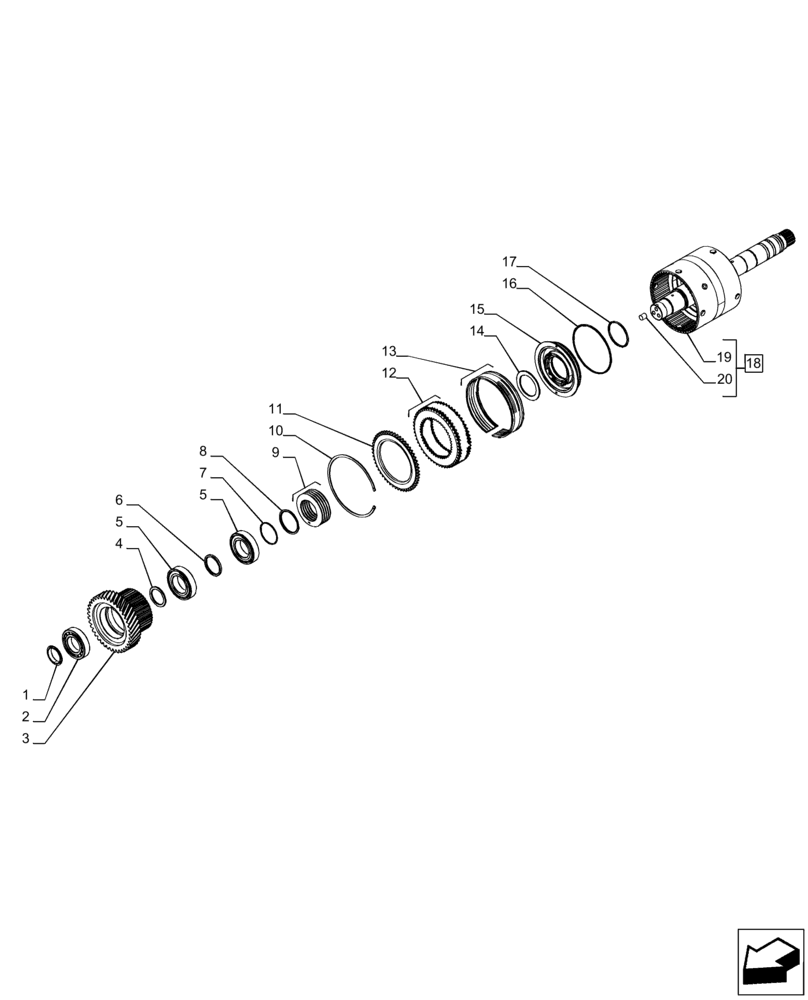

Запчасти Case IH PUMA 165 CVT (21.507.AD[07]) - VAR - 391138, 758022 - TRANSMISSION, CLUTCH, CVT (21) - TRANSMISSION

1

84403705

NUT,Hex, M45 x 1.5, 13 Thd

1шт.

2

84374621

ROLLER BEARING,45mm ID x 85mm OD x 19mm Thk

1шт.

3

84559335

HUB

1шт.

4

84358262

SPACER,45mm ID x 58mm OD x 3.5mm L

1шт.

5

87591960

BALL BEARING,50mm ID x 90mm OD x 20mm W

2шт.

6

84559337

SPACER,50mm ID x 60mm OD x 5.15mm L

1шт.

7

5175981

CIRCLIP,1.5mm Thk

1шт.

8

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

9

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

5шт.

10

5122844

SNAP RING,168mm, 2mm Thk, Int

1шт.

11

84365499

THRUST PLATE,53T, 173mm OD

1шт.

12

87727505

CLUTCH PACK

1шт.

13

5166536

SPRING,173mm OD x 1.27mm Thk

Clutch Plate Separation

10шт.

14

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

1шт.

15

84356485

PISTON

1шт.

16

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

17

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

18

84559343

DRIVEN SHAFT,20T, 53T

ASSY, Incl 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Shaft, Incl in 18

1шт.

20

14536590

PLUG,10.00mm Dia x 19.80mm L

3шт.
