(90.160.BI[05]) - PILLAR, TRIM, PLATE, FRONT

Запчасти Case IH PUMA 165 CVT (90.160.BI[05]) - PILLAR, TRIM, PLATE, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

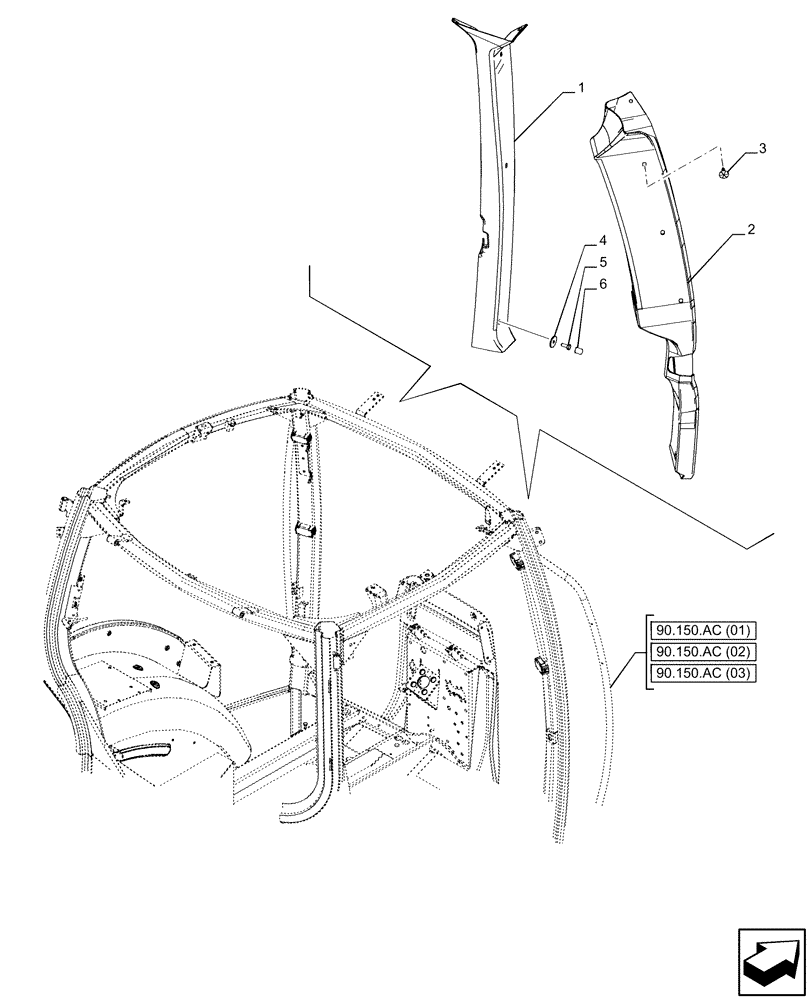

Схема запчастей Case IH PUMA 165 CVT - (90.160.BI[05]) - PILLAR, TRIM, PLATE, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (02)
4
6
5
2
1
3
90.150.ac (01)
90.150.ac (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84325618

COVER

Front, LH

1шт.

2

84364974

PADDING

Front, RH

1шт.

3

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

12шт.

4

12640607

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.

5

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

6

15811387

CAP,M10 x 13.5

1шт.

Выбрано товаров: 6
