(90.160.AM[04]) - VAR - 758802, 758803, 758804, 758805, 758806, 758807, 758871 - TRAY, COVER, LH, AUTOGUIDANCE SYSTEM

Запчасти Case IH PUMA 165 CVT (90.160.AM[04]) - VAR - 758802, 758803, 758804, 758805, 758806, 758807, 758871 - TRAY, COVER, LH, AUTOGUIDANCE SYSTEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

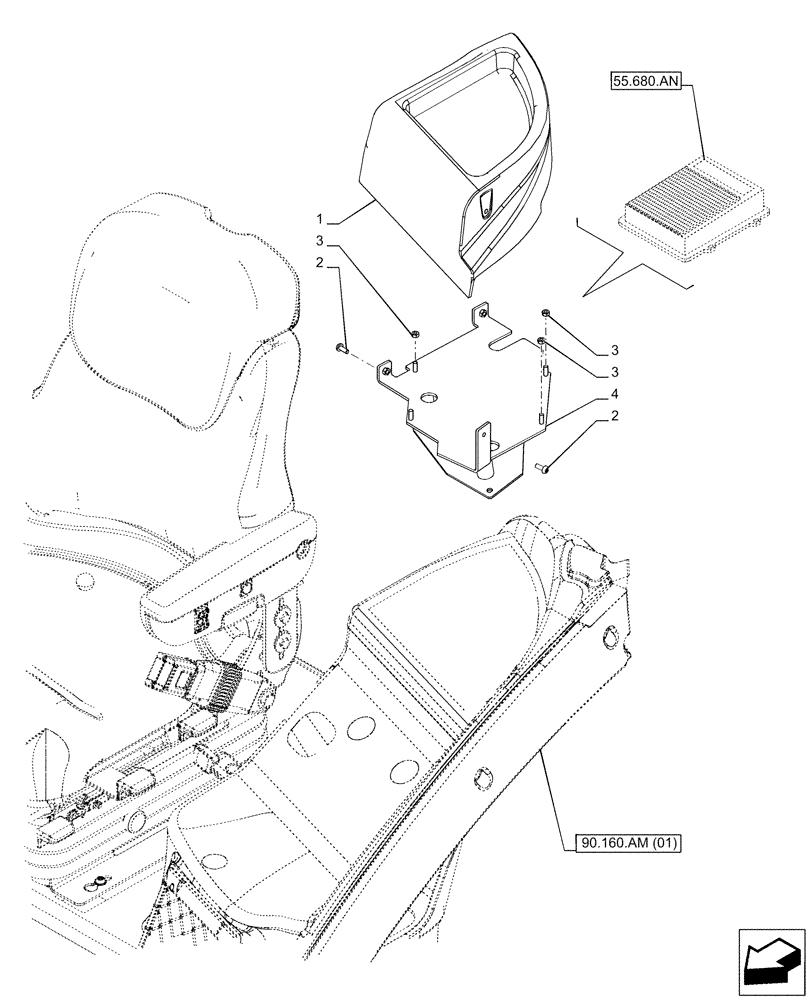

Схема запчастей Case IH PUMA 165 CVT - (90.160.AM[04]) - VAR - 758802, 758803, 758804, 758805, 758806, 758807, 758871 - TRAY, COVER, LH, AUTOGUIDANCE SYSTEM (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.am (01)
3
3
1
3
4
2
2
55.680.an
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84238871

CAB STORAGE BOX

Autoguidance Tray-Storage LH, Rear

1шт.

2

84187812

SCREW,Torx, Pan HD, M6 x 16mm, Cl 4.8

M6 x 16

3шт.

3

15896211

NUT,M6, Cl 8

4шт.

4

87679455

SUPPORT

Autoguidance Controller

1шт.

Выбрано товаров: 4
