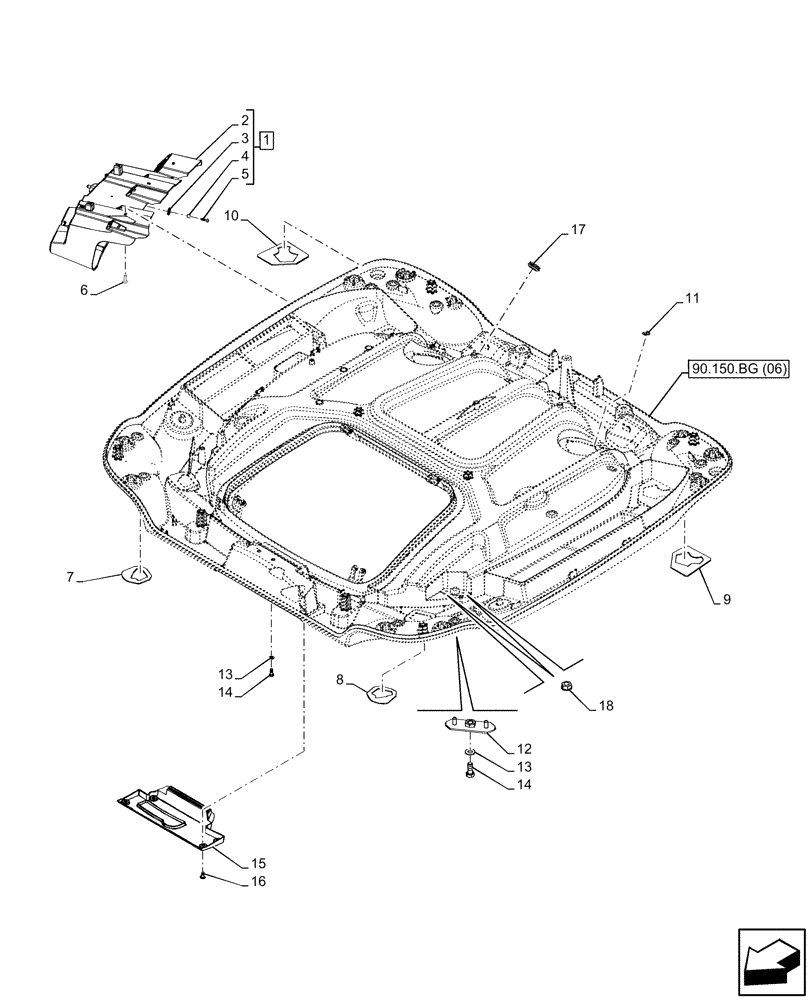

Запчасти Case IH PUMA 165 CVT (90.150.BG[04]) - VAR - 338306, 338314, 758961, 758963 - CAB ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47718243

BEZEL

ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Carrier Bezel, Incl in 1

1шт.

3

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

7шт.

4

47378854

SPACER,5mm ID x 8mm OD x 7.5mm L

3шт.

5

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

3шт.

6

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

5шт.

7

82023417

GASKET,10mm Thk, Black

RH

1шт.

8

82025910

GASKET,10 Thk, Black

LH

1шт.

9

82038034

INSULATION

LH Gray

1шт.

10

82038033

GASKET,10mm Thk

RH Black

1шт.

11

81872135

NUT,Retaining, M4.20

8шт.

12

47615530

PLATE

4шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

10шт.

14

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

10шт.

15

47676140

COVER

1шт.

16

87698795

SCREW,M6 x 12mm

M6 x 12

4шт.

17

81862738

PLUG,M38 x 28 x 5mm

1шт.

18

14084211

LOCK NUT,Hex, M6 x 1

M6

8шт.

19

47467341

SEAL,30mm W x 15mm Thk x 5000mm L

Not Shown

1шт.
