(90.124.AH[03]) - VAR - 758265, 759265 - SEAT, AIR SUSPENSION, DELUXE FABRIC COMFORT PACK MHR, CUSHION

Запчасти Case IH PUMA 165 CVT (90.124.AH[03]) - VAR - 758265, 759265 - SEAT, AIR SUSPENSION, DELUXE FABRIC COMFORT PACK MHR, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

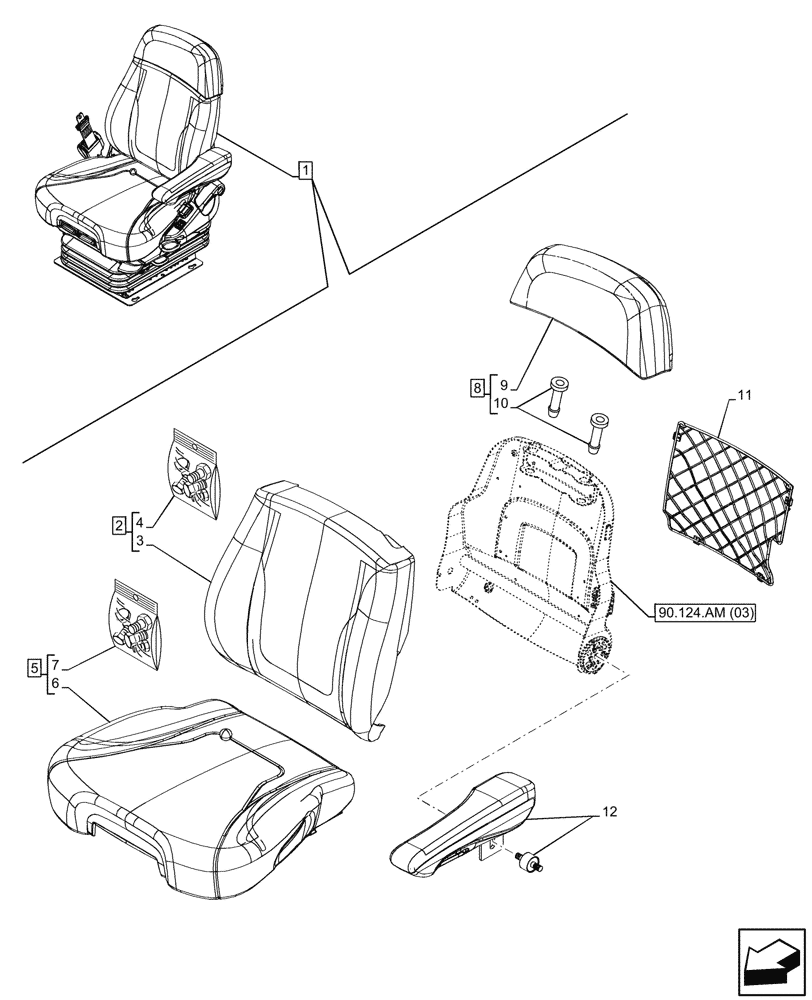

Схема запчастей Case IH PUMA 165 CVT - (90.124.AH[03]) - VAR - 758265, 759265 - SEAT, AIR SUSPENSION, DELUXE FABRIC COMFORT PACK MHR, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.am (03)
5
7
12
4
1
3
2
11
8
10
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47725238

DRIVER SEAT

ASSY, Fabric Verona Grey, Deluxe Comfort Pack MHR, Incl 2 - 12

1шт.

2

47891490

CUSHION

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

47891514

SEAT CUSHION,Leather Verona Grey/Ulisse Lena

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Seat Cushion, Incl in 5

1шт.

7

47918168

REPAIR KIT

1шт.

8

47891521

CUSHION

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Cushion, Incl in 8

1шт.

10

47891525

SERVICE KIT

1шт.

11

47576107

KIT

1шт.

12

47891482

ARMREST

1шт.

Выбрано товаров: 12
