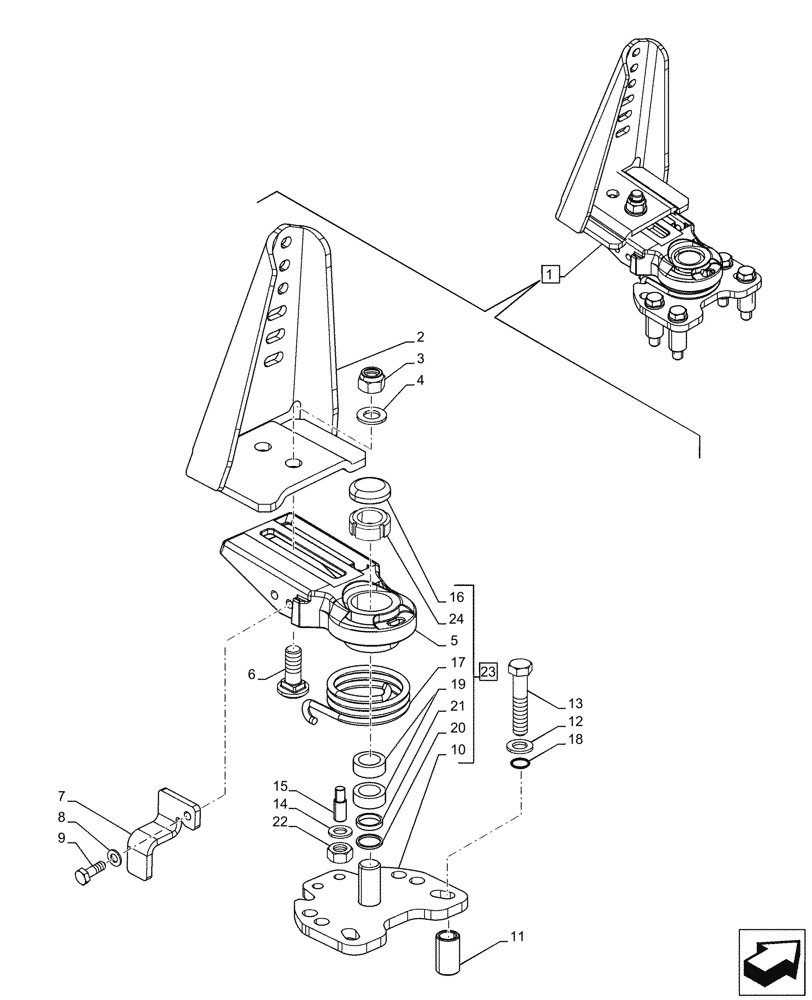

Запчасти Case IH PUMA 165 CVT (90.116.BA) - VAR - 758969, 758970, 758971, 758972 - FRONT FENDER, SUPPORT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47802224

HUB

ASSY, RH, Incl 2 - 23

1шт.

1

47802229

HUB

ASSY, LH, Incl 2 - 23

1шт.

2

47802226

SUPPORT

RH

1шт.

2

47802230

SUPPORT

LH

1шт.

3

47132634

NUT,M18, 1.5mm Pitch

1шт.

4

14489601

WASHER,19mm ID x 34mm OD x 3mm Thk

1шт.

5

47457320

HUB

1шт.

6

47132633

SCREW,M18 x 1.5, Cl 8.8

1шт.

7

84280349

LOCKING PLATE

RH

1шт.

7

84280350

LOCKING PLATE

LH

1шт.

8

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

9

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

10

87543520

BASE

1шт.

11

87543524

SPACER,45mm

4шт.

12

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

13

11254121

BOLT,Hex, M16 x 80, 8.8

4шт.

14

11191079

BELLEVILLE WASHER,Belleville, 15mm ID x 27mm OD x 2.6mm Thk

1шт.

15

47132631

DOWEL,M14 x 1.5mm

1шт.

16

84599582

PLUG

1шт.

17

84134750

SPRING,8mm OD

RH

1шт.

17

84134749

SPRING,8mm OD

LH

1шт.

18

87611913

GASKET

4шт.

19

47132628

ROLLER BEARING,25mm ID x 47mm OD x 15mm W

2шт.

20

47457370

SEAL,46mm ID x 54mm OD x 4mm Thk

1шт.

21

47457379

SPACER,5mm Thk

1шт.

22

10791311

THIN NUT,M14 x 1.5, Cl 04

1шт.

23

47457427

HUB

ASSY, RH, Incl 5, 10, 14 - 17, 19 - 22

1шт.

23

47457429

HUB

ASSY, LH, Incl 5, 10, 14 - 17, 19 - 22

1шт.

24

47457358

LOCK NUT,M25 x 1.5

1шт.
