(90.116.AC[11]) - VAR - 758182, 758340 - WIDE REAR FENDERS, EXTENSION

Запчасти Case IH PUMA 165 CVT (90.116.AC[11]) - VAR - 758182, 758340 - WIDE REAR FENDERS, EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

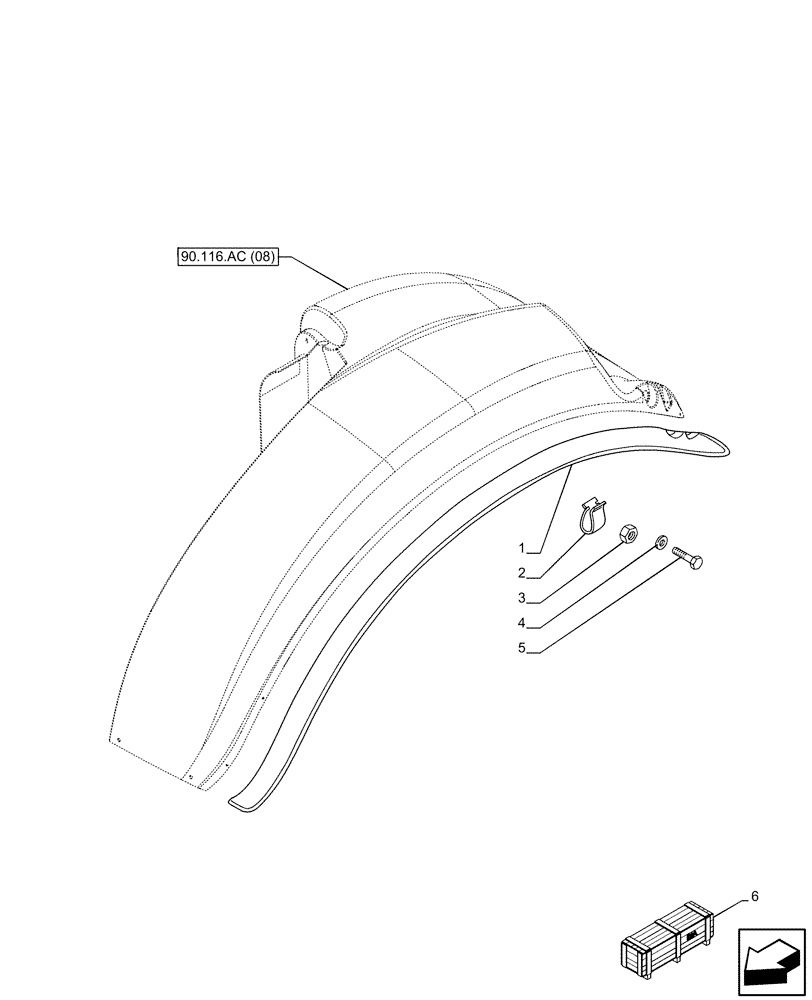

Схема запчастей Case IH PUMA 165 CVT - (90.116.AC[11]) - VAR - 758182, 758340 - WIDE REAR FENDERS, EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.ac (08)
4
3
6
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84349866

FENDER EXTENSION

LH

1шт.

1

84349867

FENDER EXTENSION

RH

1шт.

2

87622826

SPRING CLIP,0.5mm Thk

14шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

8шт.

4

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

8шт.

5

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

16шт.

6

718293014

DIA KIT, TRACTOR

Rear Fender Extension, Incl 1 - 5

1шт.

Выбрано товаров: 7
