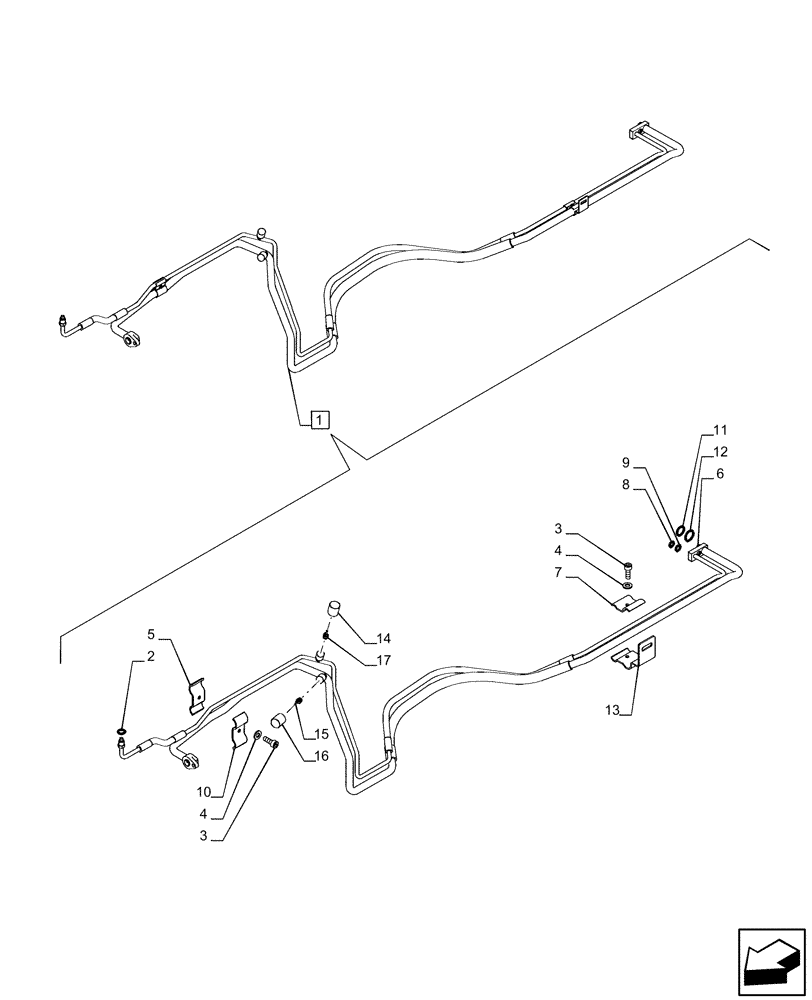

Запчасти Case IH PUMA 165 CVT (50.200.AB[03A]) - VAR - 391130, 758000 - AIR CONDITIONING, HOSE, COMPONENTS - BEGIN YR 07-MAR-2014 (50) - CAB CLIMATE CONTROL

1

47681735

TUBE

ASSY, Incl 2 - 17

1шт.

2

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

3

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

2шт.

4

10615279

LOCK WASHER,M4, Serr

2шт.

5

47490371

BRACKET

A/C Clamp

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

7

84233864

BRACKET

1шт.

8

82007847

O-RING,1.8mm Thk x 6.7mm ID

1шт.

9

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

10

47490001

BRACKET

1шт.

11

82007848

O-RING,2.4mm Thk x 13.4mm ID

1шт.

12

10319983

O-RING,1.6mm Thk x 16.1mm ID

16 x 1.6

1шт.

13

84233863

BRACKET

1шт.

14

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

High Flow Low Side Port

1шт.

15

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

High Flow High Side Port

1шт.

16

414083A1

VALVE

High Flow Low Side Port

1шт.

17

414082A1

CORE

High Flow High Side Port

1шт.
