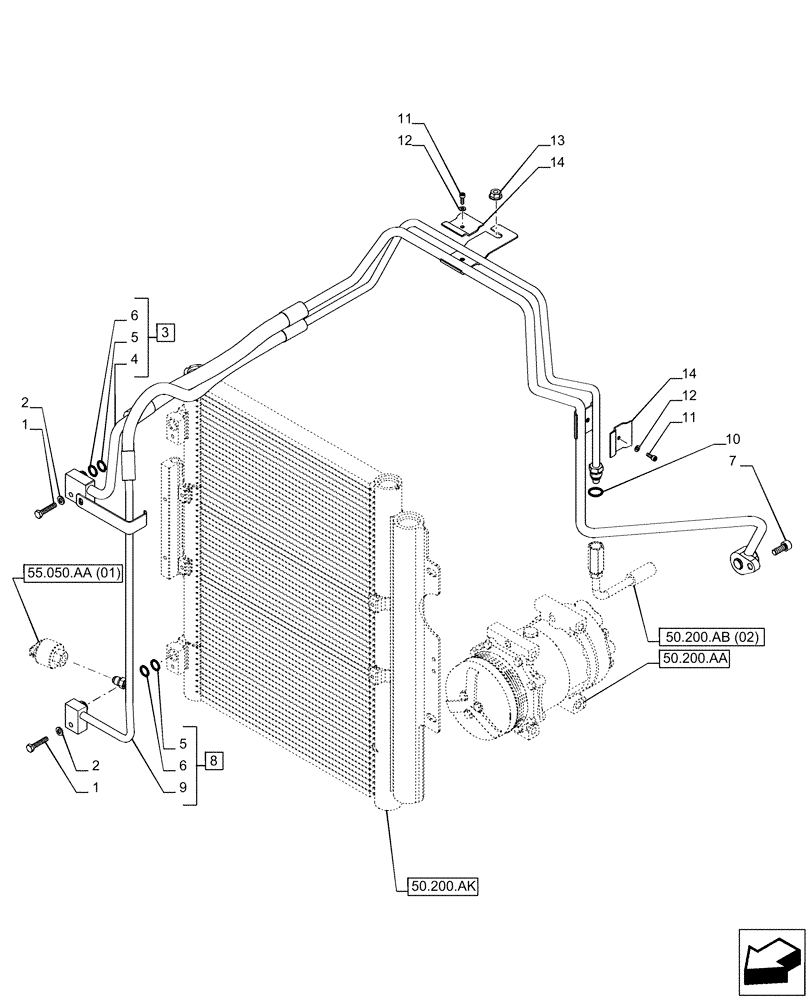

Запчасти Case IH PUMA 165 CVT (50.200.AB[01]) - VAR - 391130, 758000 - AIR CONDITIONING, LINES (50) - CAB CLIMATE CONTROL

1

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

3шт.

2

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

3

47548650

TUBE

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

5

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

7

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

8

47549725

TUBE

ASSY, Incl 5, 6, 9

1шт.

9

NSS

NOT SOLD SEPARAT

Hose, Incl in 8

1шт.

10

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

11

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

2шт.

12

10615279

LOCK WASHER,M4, Serr

2шт.

13

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

14

47549862

BRACKET

A/C Pipe

2шт.
